Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM
Canon G15 Any other parts or stuff Canon G15 PCB	Digic STACKED		ADP5029	AAG OIS and lens driver D6542 R2J30514			ADV7521 BD8311 CH46313 D9141 U26134		NB-10L	3452 flex	Canon G15 6.3-30.5mm 1:18-28
Canon G1x Also known as: Canon PC1674 Any other parts or stuff Canon G1x PCB	Digic STACKED	AD80246	BD8311 BD8313 BD8313 SN96005W3	AAG OIS and lens driver D6542 R2J30514		G022	ADAU1381 ADV7521 CH46313 KXRB521176		NB-10L	432AKM7 (1-886-320-11)	Canon G1x
Canon Ixus 1100 Also known as: Canon PC1679 Any other parts or stuff Canon Ixus 1100 PCB	Digic STACKED			AAG OIS and lens driver D6541 BGA R2J30507	20071		1716A ISP1716 USB transiever ADAU1381 ADV7521 TSC20081		NB-9L	138AKN-7 (1-384-835-11) touch	Canon Ixus 1100
Canon Ixus 500HS Also known as: Canon ELPH 520HS Canon PC1736 Any other parts or stuff Canon Ixus 500HS PCB	Digic STACKED		ADP5029	AAG OIS and lens driver AAG OIS and lens driver KXSS5 T5DB3	BPR	P4010	ADAU1381 ADV7521		NB-9L	2971 fl, 2972 fl (T08115AAPA1)	Canon Ixus 500HS
Canon Ixus 510HS Also known as: Canon PC1735	Digic STACKED		ADP5029 0003	AAG OIS and lens driver AAG OIS and lens driver T5DB3	BPR	P4010	ADAU1381 ADV7521 KXSC5 21544		NB-9L	QPWBM1390TPZZ	Canon Ixus 500HS
Canon SX30 Also known as: Canon PC1560 Any other parts or stuff Canon SX30 PCB	Digic 4 CK4-1249	(MN34572 14MP) NN12085A	MB39C317	AAG OIS and lens driver R2J30514 TB6610WBG			4646 AA1900 ADV7521 BD8311 BD8313 BD8313 CH46313	E4571 RTC clock canon	NB-7L	1700 fl Узкий шлейф 37 конт.	Canon SX30

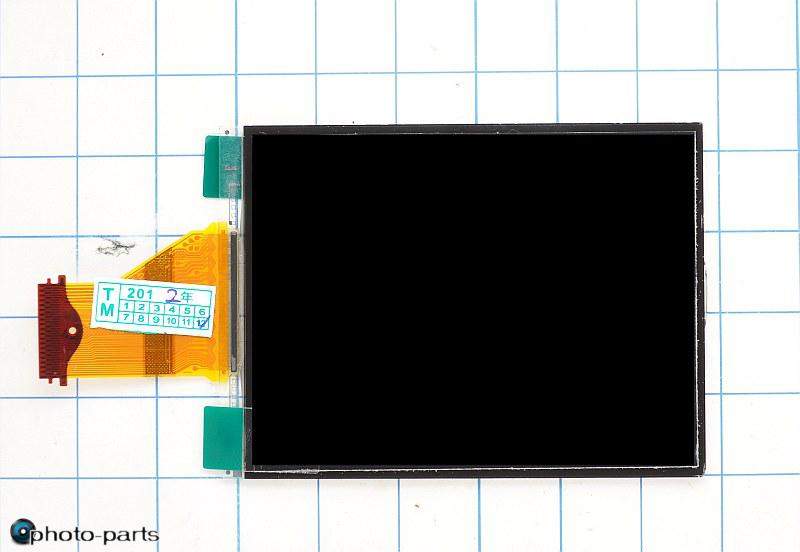

Canon SX40 Also known as: Canon PC1680 Any other parts or stuff Canon SX40 PCB	CK4-1304 Digic STACKED		39C325 SN96005W3	AAG OIS and lens driver D6549 R2J30514			4646 ADV7521 BD8311 BD8313 CH46313 P003 P01208		NB-10L	TX0768EAAA1 (2511 fl) Широкий шлейф 39 конт.	Canon SX30
