Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	Battery	LCD	ZOOM	Comments
Agfa Compact 102	Sunplus SPCA5310A	VSP6244A	AT1868N	A5573	1454B = AT1454. All suffixes are equal			2xAA	WD-F9624VR Длина шлейфа 47 мм	China Type 8 6.3-18.9mm 1:2.9-5.4
Benq DC C1430	Sunplus SPCA5310B		LS D0 MOT	A5573	FC RT9595			2xAA	WD-F9624VL	China Type 8 6.3-18.9mm 1:2.9-5.4
Benq DC E1220	ZR36493BGCF (11S)	ADDI9000 BGA	RT9951	AT5558N	FC RT9595	P4005			TD030WHEA2	Casio Z35 6.3-18.9mm
Benq DC E1250	Sunplus SPCA5310A	VSP6244A		A5573	FC RT9595	P4005			WD-F9624VR Длина шлейфа 47 мм	China Type 8 6.3-18.9mm 1:2.9-5.4	Перепроверить тип дисплея
BENQ DC E1430	Sunplus SPCA5310A	VSP6244A	RT9971	A5573	FC RT9595	P4005		LI-42B	WD-F9624VJ	China Type 8 6.3-18.9mm 1:2.9-5.4

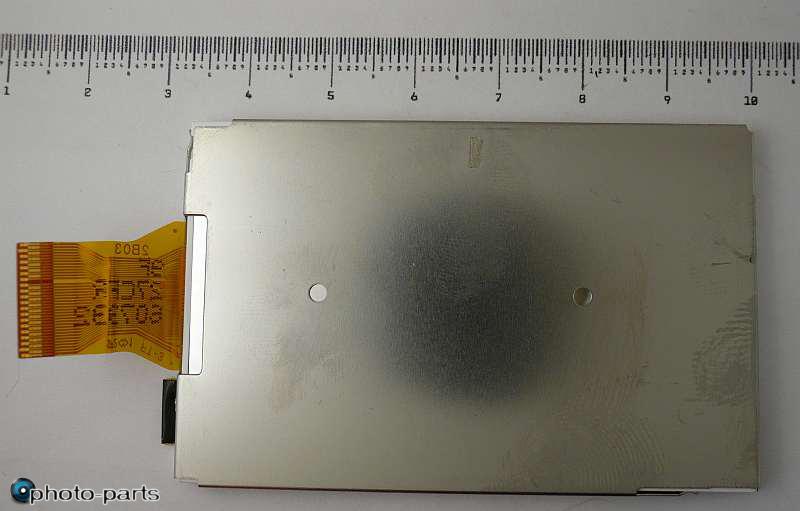

Casio S5 Also known as: Casio EX-S5		ADDI9000	RT9951			P4002		NP-80, NP-82 (Li-42B)	2B03 flex	Casio Z35 6.3-18.9mm
Casio Z1	ZR36493BGCF (11S)	ADDI9000	RT9951	AT5558N		P4002			2B03 flex	Casio Z35 6.3-18.9mm
Casio Z16	Sunplus SPCA5310A	(RJ23Y3H 12MP) VSP6244B	RT9971	A5573	FC RT9595	P4005	JF=CH RT9519	NP-80, NP-82 (Li-42B)	WD-F9624VR Длина шлейфа 47 мм	China Type 8 6.3-18.9mm 1:2.9-5.4
Casio Z2 Any other parts or stuff Casio Z2 PCB	ZR36493BGCF (11S)	ADDI9000	RT9951	AT5558N	FC RT9595	P4002			2B03 flex	Casio Z35 6.3-18.9mm
Casio Z215		ADDI9000	RT9951	AT5558N		P4002		NP-80, NP-82 (Li-42B)	2B03 flex	Casio Z35 6.3-18.9mm

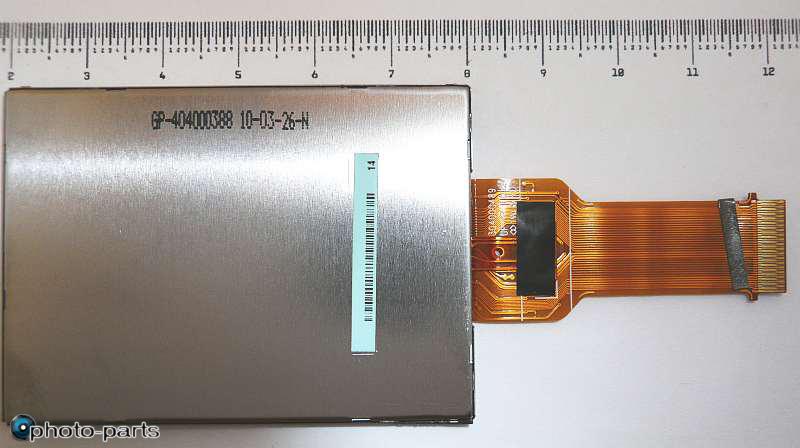

Casio Z33	ZR36493BGCF (11S)	ADDI9004		AT5558N		P4005		NP-80, NP-82 (Li-42B)	304000489GP	Casio Z35 6.3-18.9mm

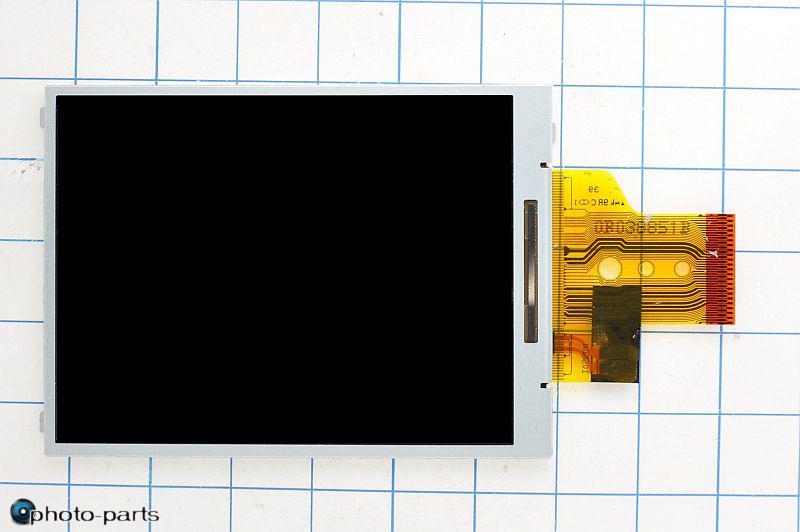

Casio Z330	Casio R8A30270	ADDI9004		AT5568N		P4005		NP-80, NP-82 (Li-42B)	M0950T	Casio Z35 6.3-18.9mm
Casio Z35	ZR36493BGCF (11S)	ADDI9004		AT5558N		P4005			304000489GP	Casio Z35 6.3-18.9mm

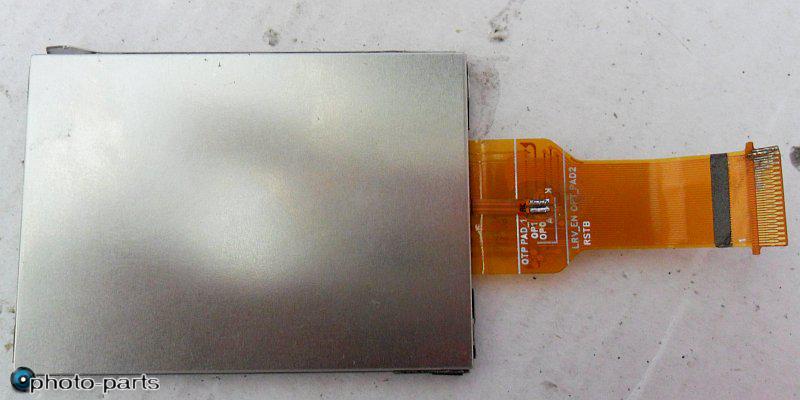

Casio Z37									304000489GP Giantplus 307283301	Casio Z35 6.3-18.9mm
Fujifilm J20	ZR36493BGCF (11S)	(C675 10MP) ADDI9000 BGA			FC RT9595	P4002			69.03A13.011 2.7 inch	Casio Z35 6.3-18.9mm
Medion MD86276									WD-F9624VJ	China Type 8 6.3-18.9mm 1:2.9-5.4
Polaroid I1037	MB91689	VSP6244	AT1868N	AT5558N	1454C	P4005			Giantplus 307233500 По контроллеру Fe4030, но зеркальная разводка шлейфа. Если перевернуть разъем - работает.	Casio Z35 6.3-18.9mm	Бывают разных версий, с объективом Casio Z35 и своим
Polaroid I1237 Also known as: Polaroid i1236 Any other parts or stuff Polaroid I1237 PCB	SPCA5210A	(C677 12MP) VSP6244A	AT1868N	A5573	1454B = AT1454. All suffixes are equal			2xAA	WD-F9624V8	Casio Z35 6.3-18.9mm China Type 7 6.2-18.6mm	Бывают разных версий, с объективом Casio Z35 и своим
Polaroid I1437	SPCA5210A		AT1868N	A5573				2xAA	WD-F9624VL	China Type 8 6.3-18.9mm 1:2.9-5.4
Polaroid T1235	ZR36493BGCF (11S)		RT9951	AT5558N				KLIC-7001	TD030WHEA2 touch	Casio Z35 6.3-18.9mm

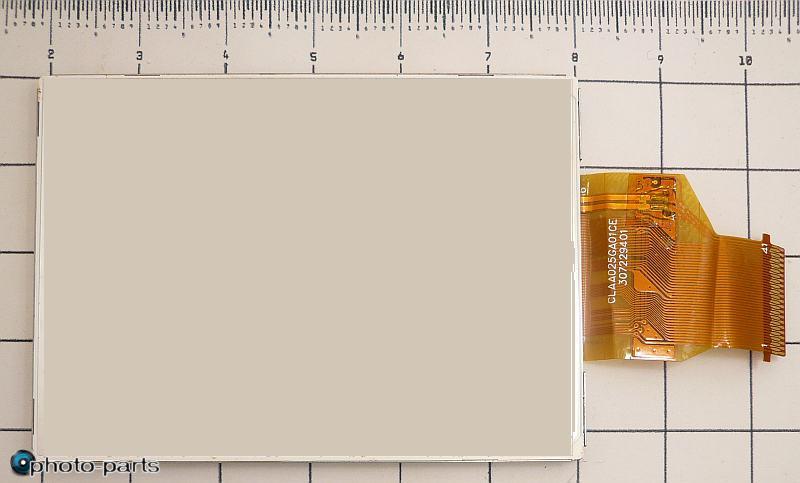

Samsung ES10 Any other parts or stuff Samsung ES10 PCB Samsung USB7 cable	ZR36493BGCF (11S)	ADDI9000	BD9757MW	LV8056	A8835	G030		2xAA	CLAA025GA01CE (LMS250GF06)	Samsung S760 6.3-18.9mm
Samsung ES15 Also known as: Samsung SL30 Any other parts or stuff Samsung ES15 files	ZR36494BGCF (11E)	ADDI9002	BD9757MW	LV8056	A8835			2xAA	CLAA025GA01CE (LMS250GF06)	Samsung S760 6.3-18.9mm
Samsung ES17 Any other parts or stuff Samsung ES17 PCB	ZR36493BGCF (11S)	(RJ23Y3H 12MP) ADDI9002	BD9757MW	LV8056	A8835			2xAA	CLAA025GA01CE (LMS250GF06)	Samsung S760 6.3-18.9mm

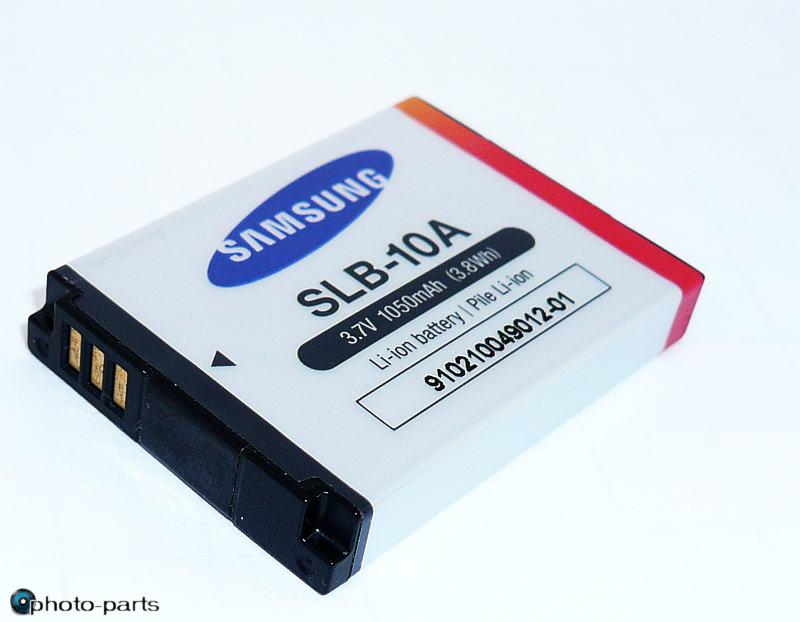

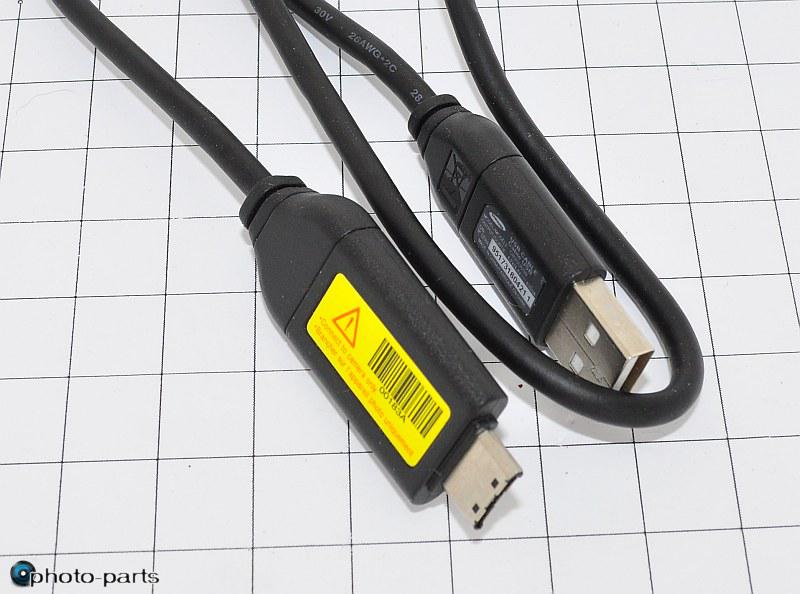

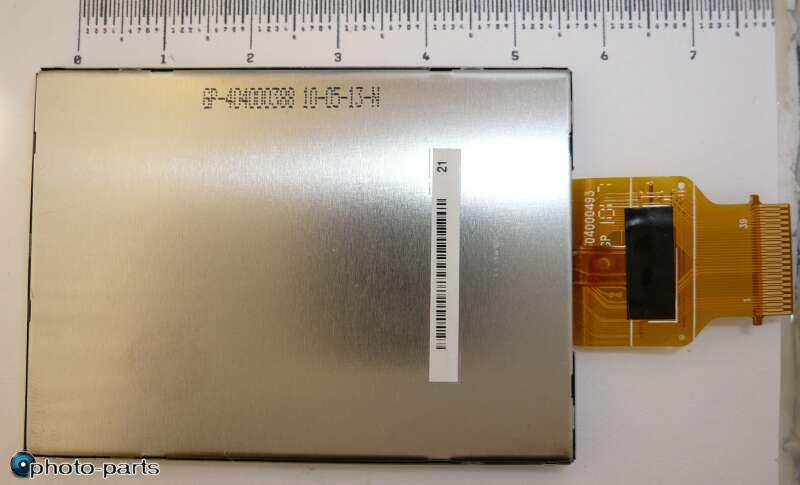

Samsung ES55 Also known as: Samsung SL102 Any other parts or stuff SUC-C3 USB cable	ZR36493BGCF (11S)	(RJ23W3 10MP) ADDI9002	BD9757MW	LV8056	A8835	G030		SLB-10A	304000493 GP CLAA025GA01CE (LMS250GF06)	Samsung S760 6.3-18.9mm
Samsung ES60 Also known as: Samsung ES63 Samsung SL105 Any other parts or stuff SUC-C3 USB cable	ZR36493BGCF (11S)	ADDI9002	BD9757MW	LV8056	A8835	G030		SLB-10A	CLAA025GA01CE (LMS250GF06)	Samsung S760 6.3-18.9mm

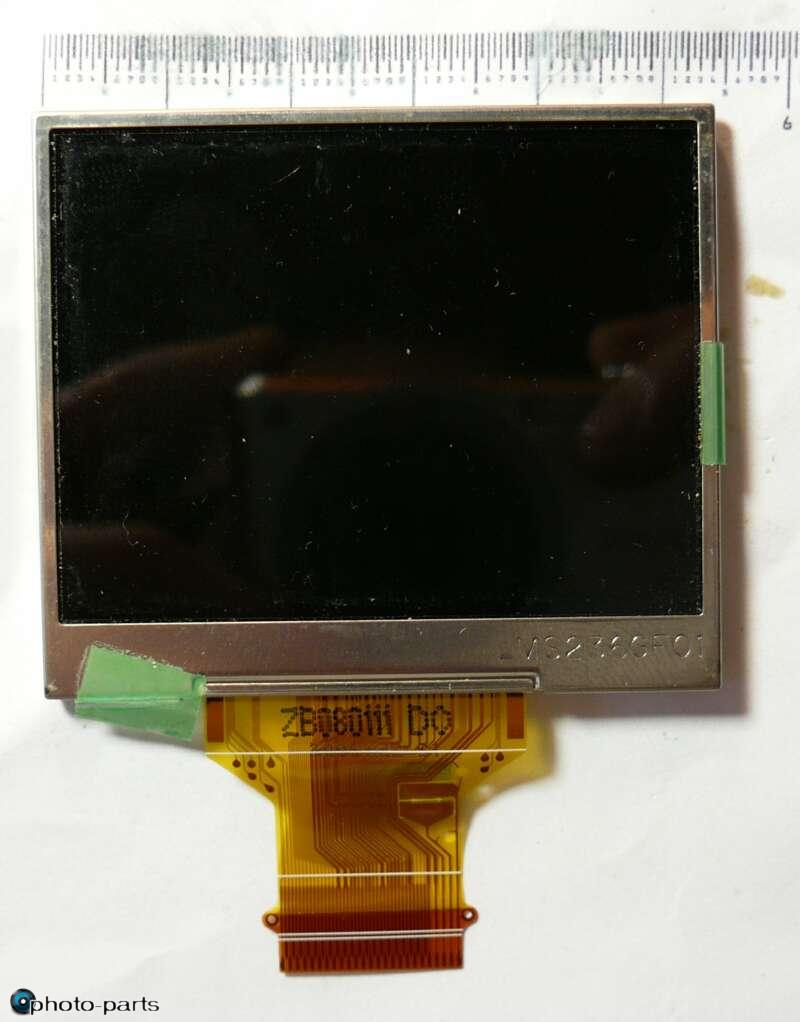

Samsung S760 Also known as: Samsung D760 Any other parts or stuff Samsung S760 cover Samsung S760 PCB Samsung USB7 cable	ZR36477BGCF	LR36B11	BD9743	LV8056	A8439 (39T marking)			2xAA	LMS236GF01	Samsung S760 6.3-18.9mm	Проверить тип процессора
Samsung S860 Also known as: Samsung D860 Any other parts or stuff Samsung S760 cover Samsung S760 PCB Samsung USB7 cable	ZR36477BGCF	LR36B11	BD9743	LV8056	A8439 (39T marking)			2xAA	LMS236GF01	Samsung S760 6.3-18.9mm
