Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM	Comments
BBK DP1250	TMS320DM350ZWK	VSP6234A	RT9911	30404 R2A30 404NP		8G136			AK-150	69.02A31.003	Kodak V803
BBK DP830	TMS320DM350ZWK	NN12200A		30404 R2A30 404NP						69.02A31.008

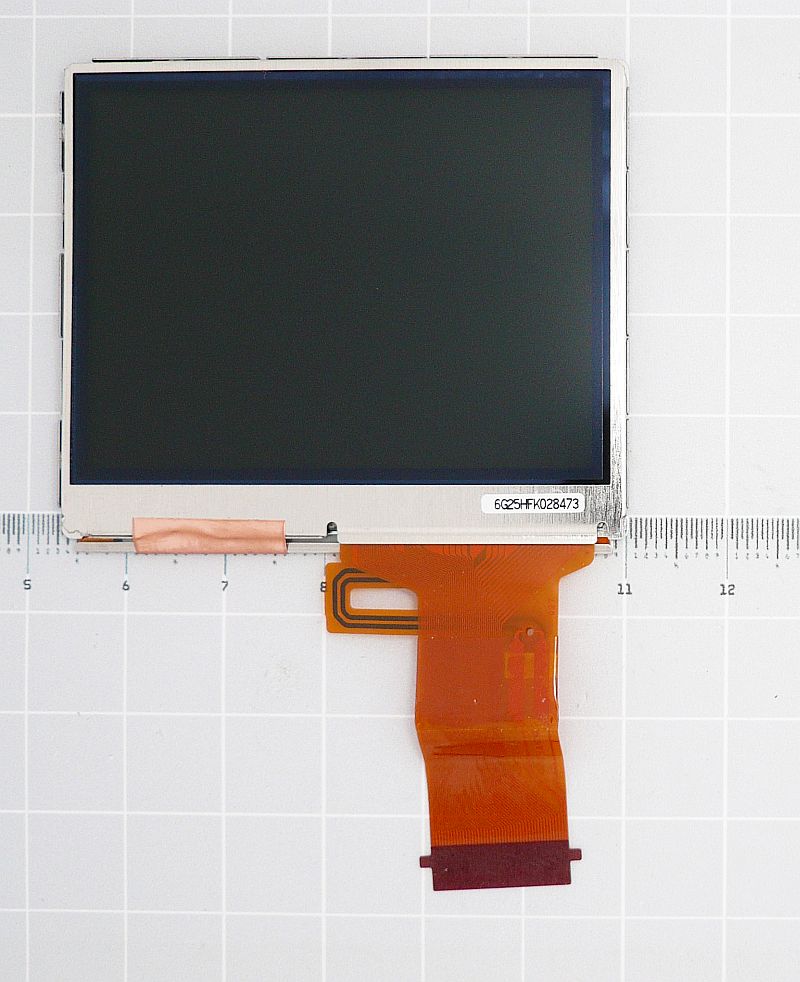

Fujifilm S6500 Also known as: Fujifilm S6500FD	FF4198 STACKED FF4199	(MS3897B) AD9926	30212	30404 R2A30 404NP FF1201		25J8F	LC15009	F1194	4xAA	Casio 2654fl	Fujifilm S6500

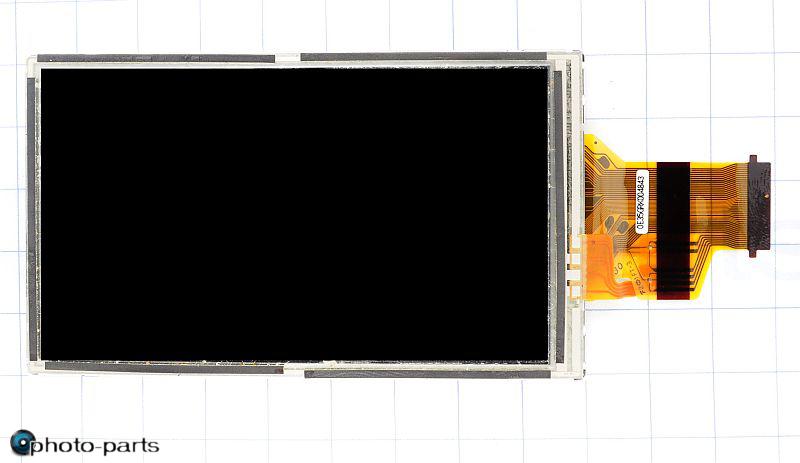

Fujifilm Z700 Also known as: Fujifilm FinePix Z700EXR		AD80190	ADP5026	30404 R2A30 404NP			6968 CD7410 INVENSENCE IDG 1150	FF4214	NP-45A (Li-42B)	3A30 touch	Fujifilm Z700

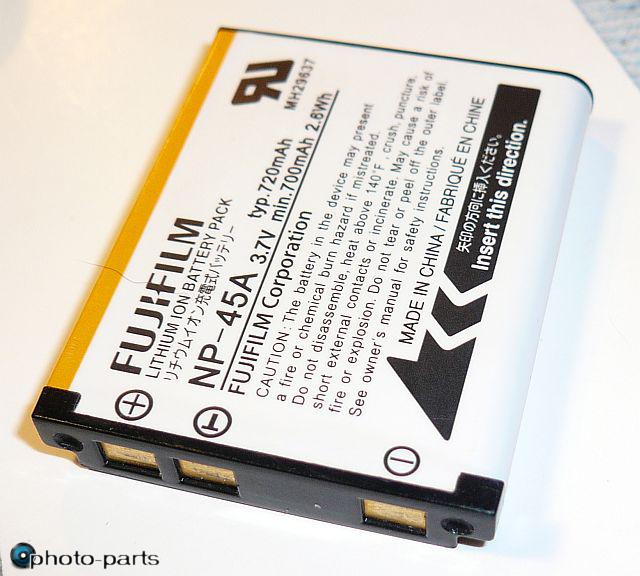

General Electric E850 Also known as: GE E850 Any other parts or stuff General Electric E850 PCB	TMS320DM350ZWK	VSP6234	RT9911	30404 R2A30 404NP	AQ	8G136	AIC12K INVENSENSE KM101	M430	GB-40	TD030MHEB27	Olympus FE200
General Electric G2	TMS320DM350ZWK	NN12200A	RT9917	30404 R2A30 404NP	DM RT9594, 4*4 SMD	8G136	0722 AIC12K		GB-20	69.02A31.008	General Electric G2

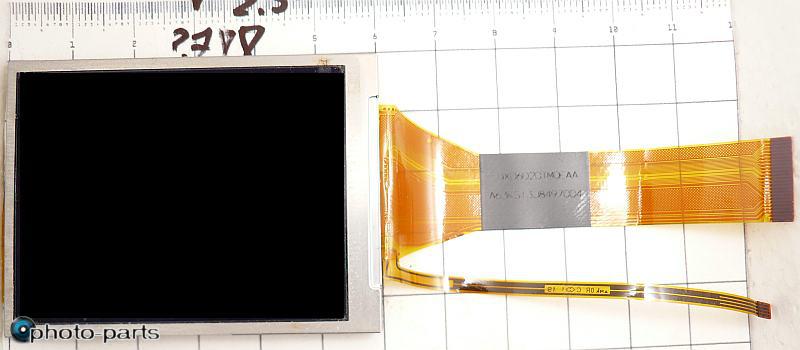

Kodak V603	TMS320DM320	AD9923	MAX8611	30404 R2A30 404NP		25J8F		NEC 784214A914		DX06D20CTMPEAA	Kodak V603

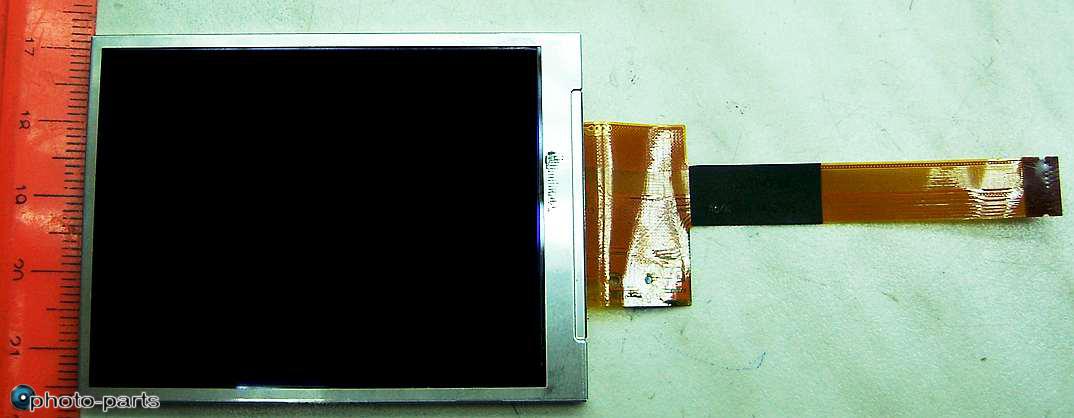

Kodak V610	TMS320DM320	VSP02M21	MAX8611	30404 R2A30 404NP 30404 R2A30 404NP BD9226				NEC U4214A912	KLIC-7001	63151A46	Kodak V610

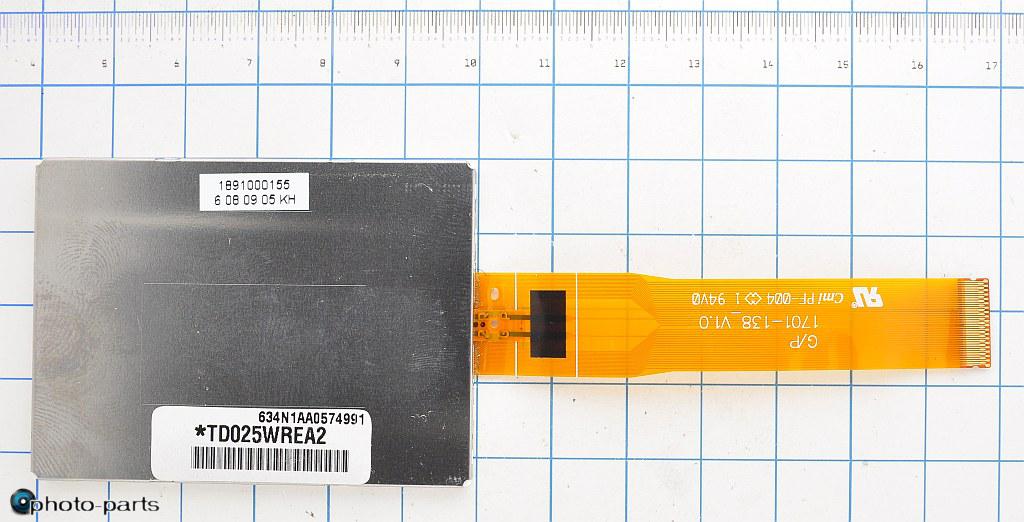

Kodak V705	TMS320DM320	VSP00M21		30404 R2A30 404NP			D6884 WM8926G		KLIC-7001	TD025WREA2 (1701-138_V1.0) Не совместим ни с одним типом дисплеев

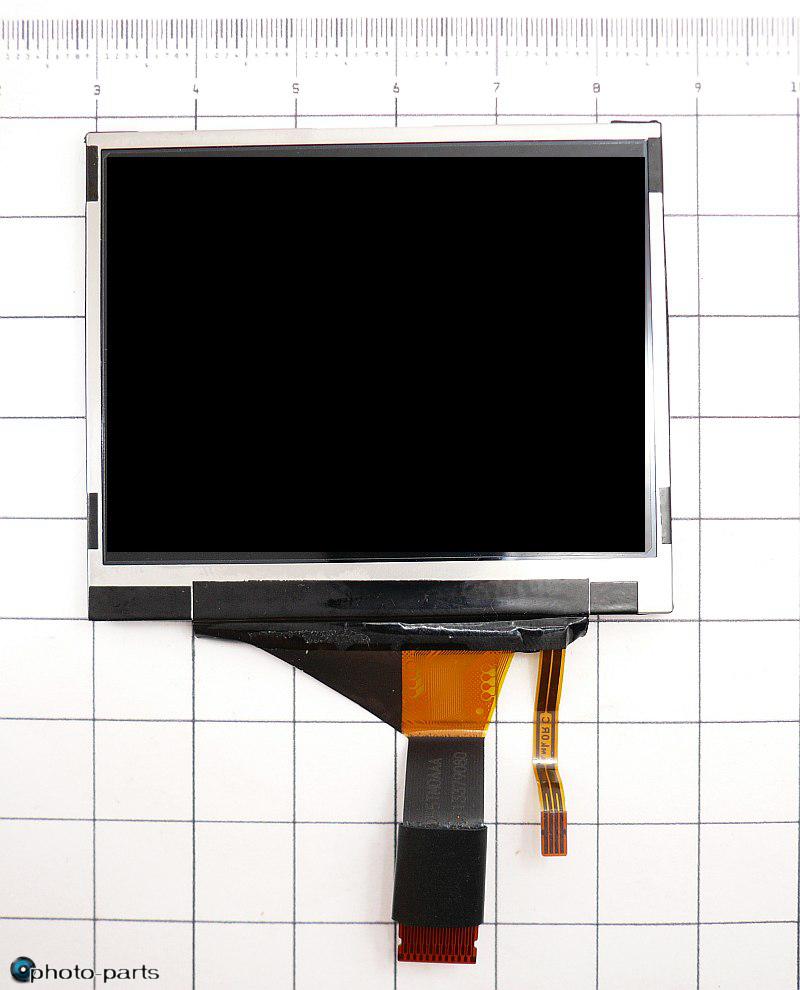

Kodak Z612	TMS320DM320	AD9923	MAX8611	30404 R2A30 404NP	APF	25J8F		95F118AS	2xAA KLIC-8000	DX06D55TM	Kodak Z712	Объектив отличается шлейфом OIS

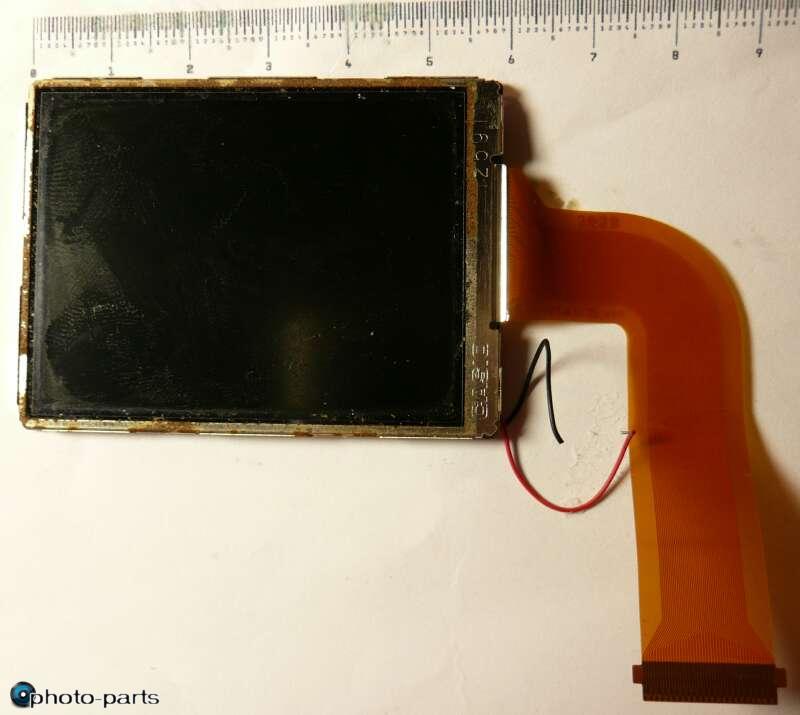

Nikon L5 Any other parts or stuff Nikon L5 PCB	Nikon EI-135	(C629 7MP BIG) AD9923	BD9739KN	30404 R2A30 404NP Nikon EI-134			WM8974G			Casio 2629 fl. 2591sh.	Nikon L5

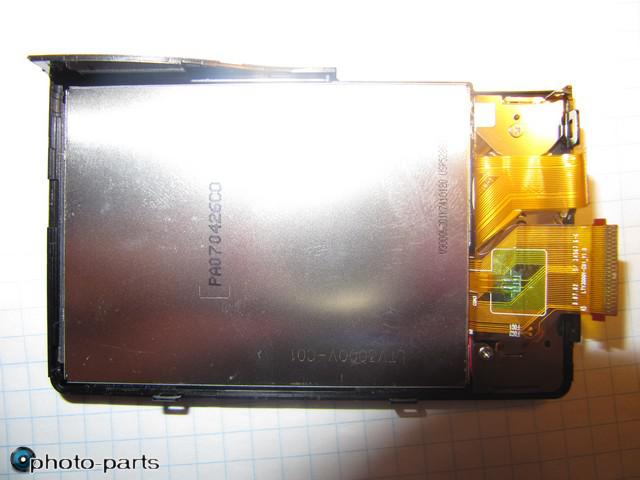

Nikon S50C Also known as: Nikon Coolpix S50c	ZR36470BGCF	AD9923A	BD9745 LBXR	30404 R2A30 404NP Nikon EI-139	LBVP	25H8F				LTV300QV-C01	Nikon S51
Nikon S51 Any other parts or stuff Nikon S51 PCB	ZR36470BGCF (9M)	AD9920	BD9741MW LBXR	30404 R2A30 404NP Nikon EI-139	LBVP	P4002		534S		LMS300GC01	Nikon S51

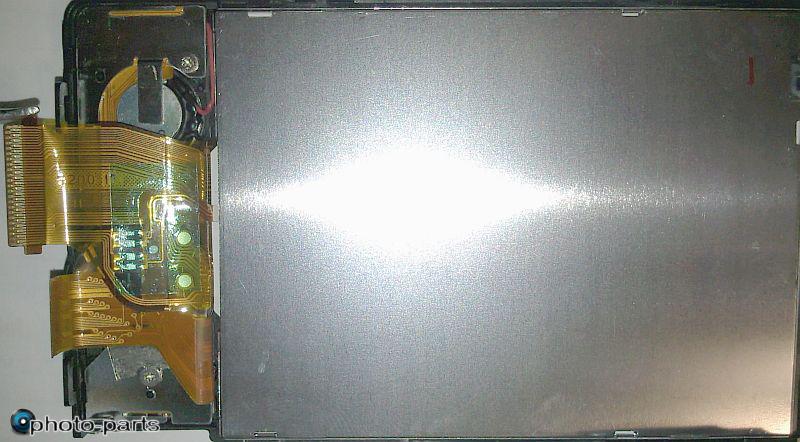

Nikon S52	ZR36470BGCF (9M)	AD9920	TPS65530	30404 R2A30 404NP Nikon EI-139	BPR					9200 fl	Nikon S51

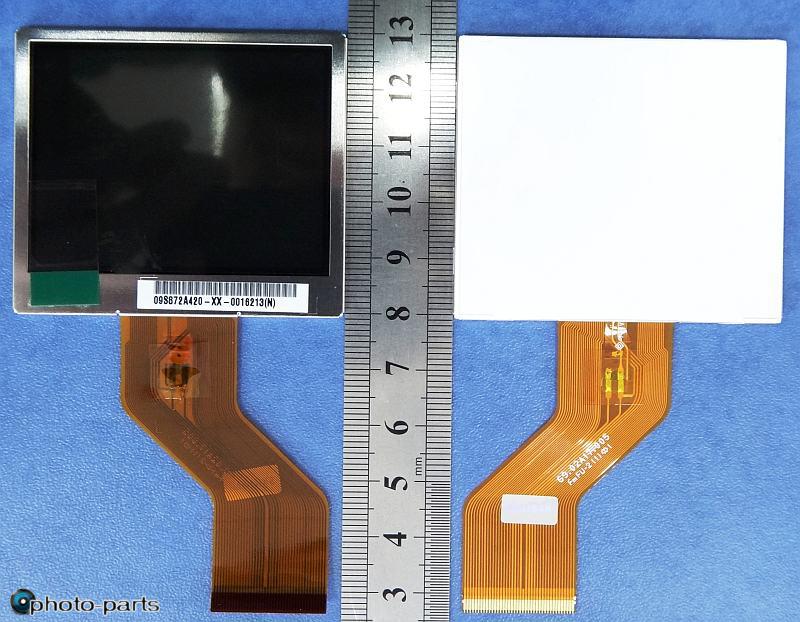

Nikon S9 Any other parts or stuff CB-USB7 cable Nikon S9 PCB	ZR36463BGCG (8S)	NN12067A	RT9911	30404 R2A30 404NP	AN8K					69.02A17.005	Nikon S9	LCD FE200, flex longer

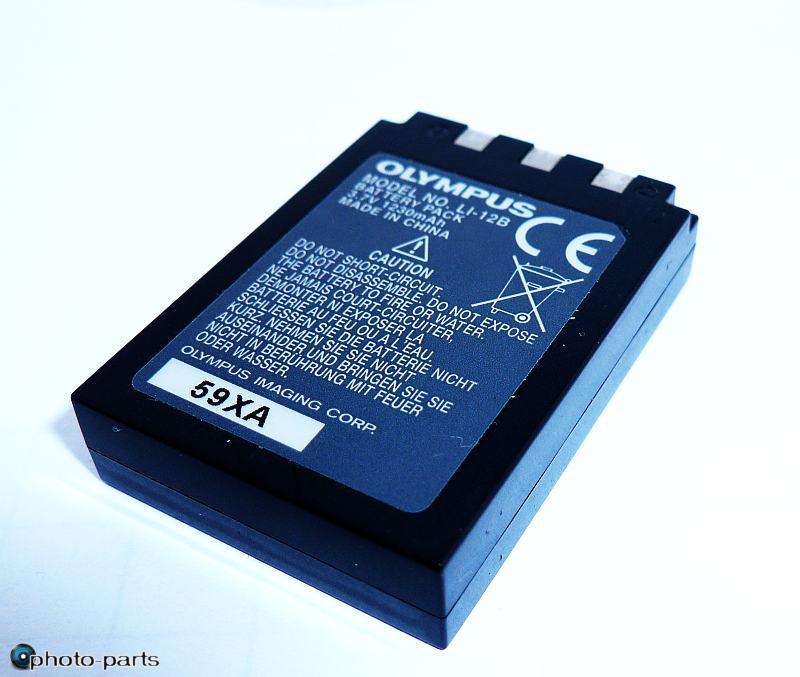

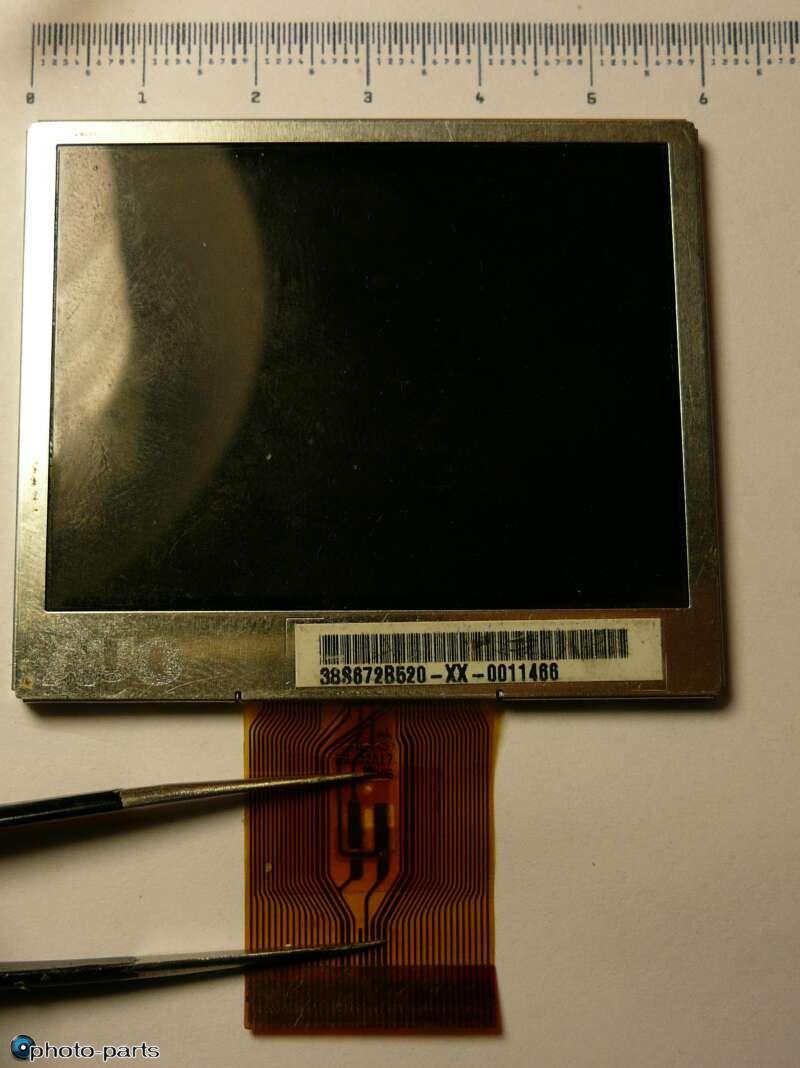

Olympus FE200 Any other parts or stuff CB-USB5 cable	ZR36463BGCG (8S)	NN12069A	RT9911	30404 R2A30 404NP	AN8K				Li-12B, Li-10B	69.02A17.006	Olympus FE200	LCD=Nikon S9 flex diff
Samsung i7 Any other parts or stuff SUC-C2 USB Cable	ZR36470BGCF (9M)	D4805GA (CXD4805) i70 schematics	SN0509043 Маркировка чипа 59043A2	30404 R2A30 404NP							Samsung i70	Шлейф длиннее. См. тут"

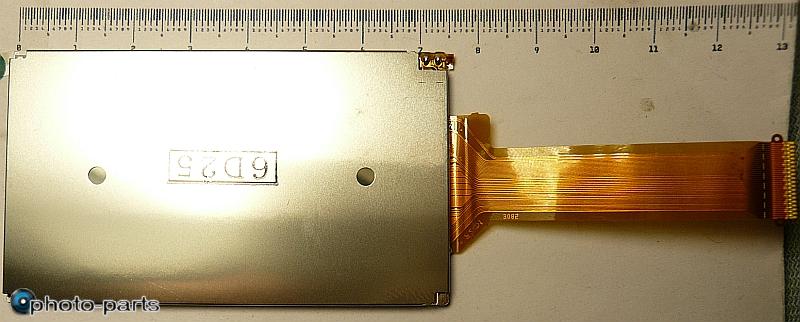

Samsung i70 Any other parts or stuff Samsung i70 files SUC-C2 USB Cable	S5C7380X01	(C629 7MP) D4805GA (CXD4805) i70 schematics	SN0509043 Маркировка чипа 59043A2	30404 R2A30 404NP			BB TI3793A			Casio 3082fl 3066sh	Samsung i70

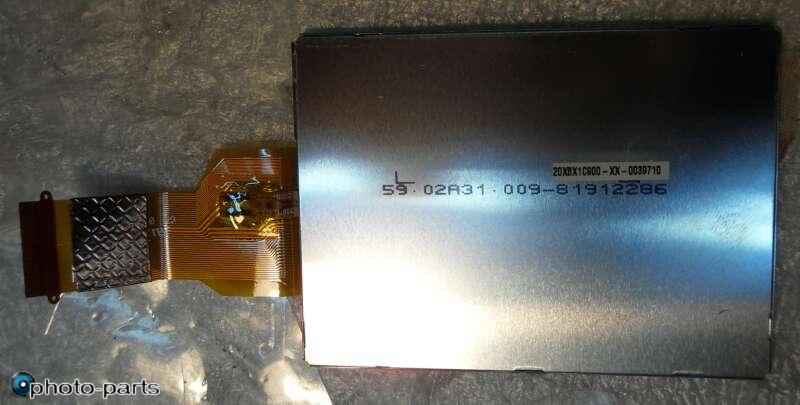

Samsung i8 Any other parts or stuff Samsung i8 PCB		D4809GA	MAX8680	30404 R2A30 404NP						69.02A31.010	Samsung i70

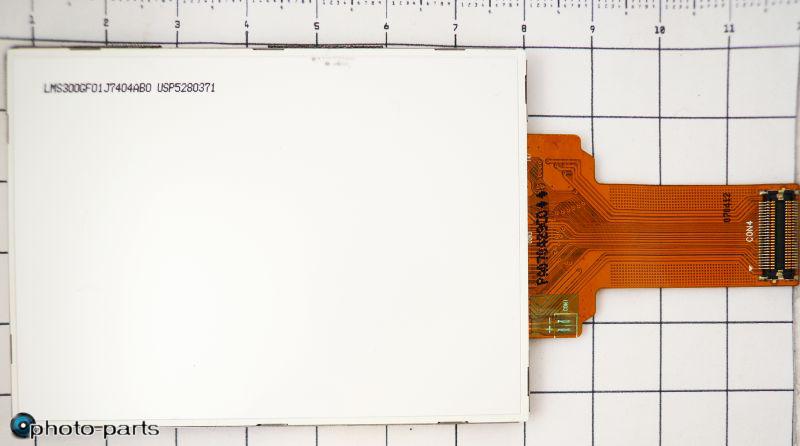

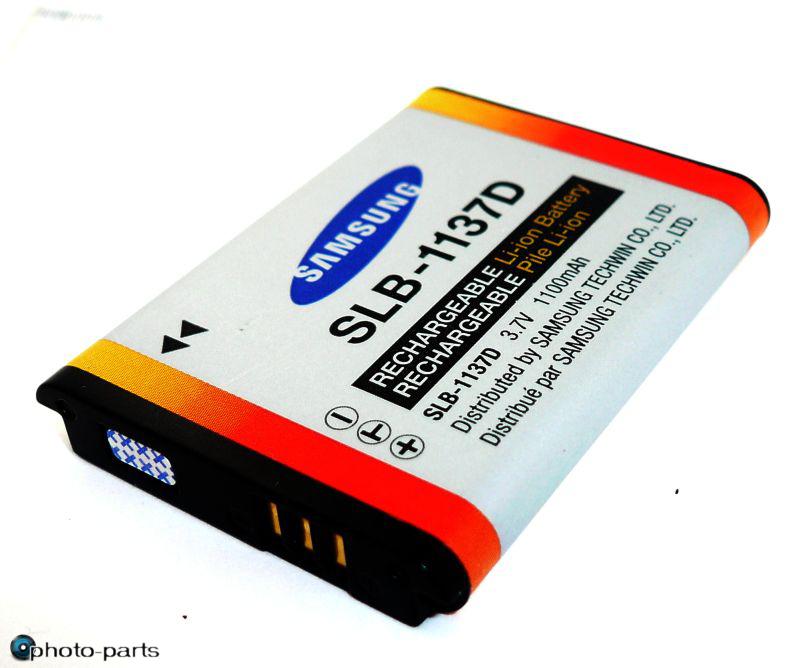

Samsung L74 Also known as: Samsung L74 Wide Any other parts or stuff Samsung L74 PCB SUC-C2 USB Cable	ZR36470BGCF (9M)	(C629 7MP) D4805GA (CXD4805) i70 schematics	SN0509043 Маркировка чипа 59043A2	30404 R2A30 404NP	A8436 (36T marking) A8436	G022	TSC2046		SLB-1137D	LMS300GF01	Samsung L74
Samsung NV3 Any other parts or stuff SUC-C2 USB Cable	ZR36460BGCG (8M)	D4805GA (CXD4805) i70 schematics	SN0509043 Маркировка чипа 59043A2	30404 R2A30 404NP	A8436 (36T marking) A8436		BB TI3793			LTV250QV-F05, LTV250QV-F07	Samsung i70	Отличается шлейфом

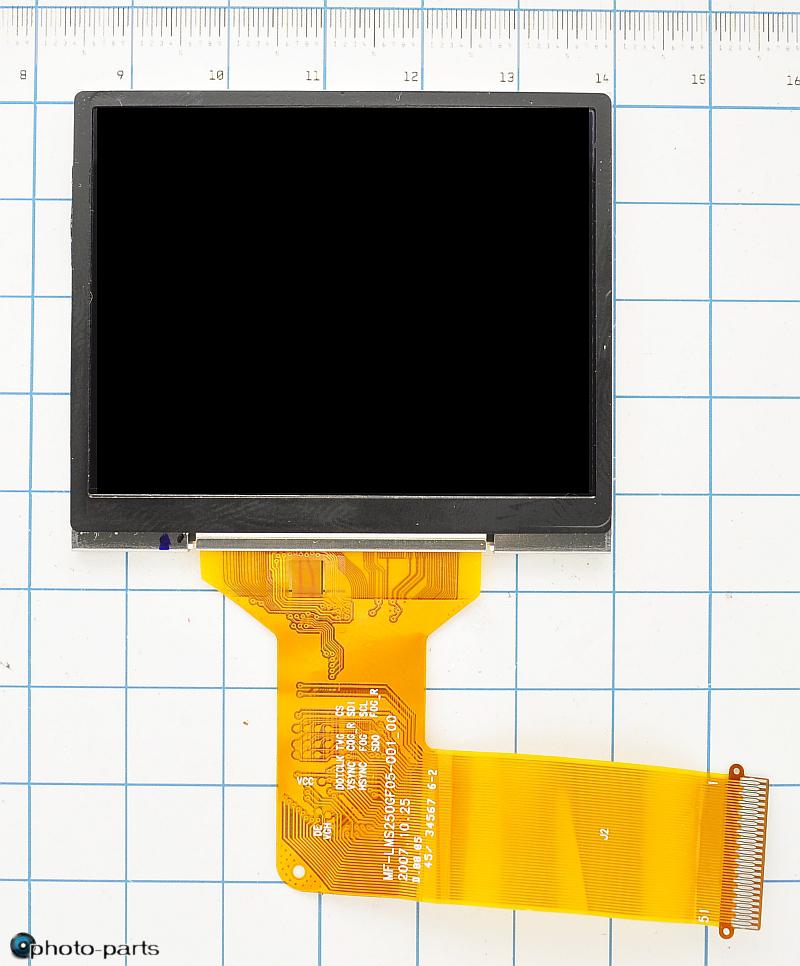

Samsung NV4 Also known as: Samsung Landiao NV33	ZR36480BGCF (10M)	D4809GA	MAX8680	30404 R2A30 404NP	A8436 (36T marking) A8436	G022			SLB-0937	LMS250GF05	Samsung i70	Прямой, длинный шлейф объектива
Samsung S1060 Also known as: Samsung BL1050 Any other parts or stuff Samsung S1060 PCB Samsung USB7 cable	ZR36473BGCF (9S)	(C675 10MP) ADDI9000	RT9917	30404 R2A30 404NP	DM RT9594, 4*4 SMD				2xAA	69.02A31.005 (69.02A31.025) Высокое напряжение подсветки, толстый	Samsung S1060
