Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM	Comments
Agfa Compact 102	Sunplus SPCA5310A	VSP6244A	AT1868N	A5573	1454B = AT1454. All suffixes are equal				2xAA	WD-F9624VR Длина шлейфа 47 мм	China Type 8 6.3-18.9mm 1:2.9-5.4
Benq DC C850	Sunplus SPCA5110A	ADDI9000	AT1398N	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	69.02A31.005 (69.02A31.025) Высокое напряжение подсветки, толстый	Casio Z19
Benq E1000			AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal					TD030WHEA2	Samsung S1030 7.4-22.2mm
Insignia DSC7P09	Sunplus SPCA5110A		AT1398N	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	TD025THEEA , 025TUE006 (1891000130-GP, 304000129A)	Casio Z19
Jenoptik JD8.0z3	ZR36451BGCF (7M)	LR38674	AT1396AN	MD156	1454B = AT1454. All suffixes are equal	P4007				69.02A16.017 Совместим с Kodak C913 AUO (69.02A16.013)	Samsung V700 7.94-22.71mm F2.8-5.1
Kodak M1073 Any other parts or stuff Kodak M1073 PCB	ZR36473BGCF (9S)	LR36B11	20010 R2A20010NP	30406 R2S30 401NP	1454B = AT1454. All suffixes are equal	(tube 19x13x1.6m) P4003	AAF	R5F2126		69.02A31.005 (69.02A31.025) Высокое напряжение подсветки, толстый	Kodak M1073	Шлейф объектива широкий
Kodak M893 Any other parts or stuff Kodak M893 PCB	ZR36474BGCF (9E)	(RJ23V3 8MP) LR36B11	20010 R2A20010NP	30406 R2S30 401NP	1454B = AT1454. All suffixes are equal	(tube 19x13x1.6m) P4003		R5F2126		69.02A31.005 (69.02A31.025) Высокое напряжение подсветки, толстый	Kodak M1073 ois Kodak Type 1 Внимание! Посадочные места под матрицу различаются у этих объективов. Полностью совместимы только тубусы.	Широкий шлейф
Nikon L1	Nikon EI-130	AD9924		M63063	1454B = AT1454. All suffixes are equal	P4002	4631			Casio 2092 fl

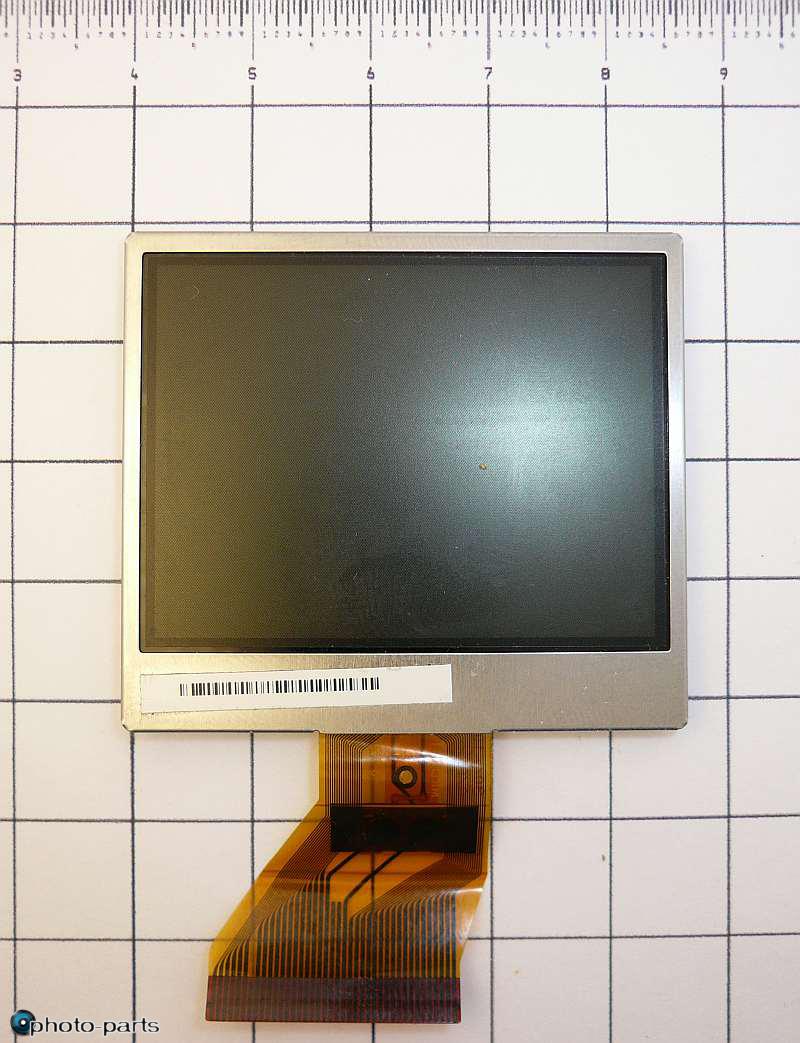

Nikon L10 Any other parts or stuff Nikon L10 PCB	ZR36473BGCF (9S)	AD9923	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	P4002				304-10_A	Casio Z19

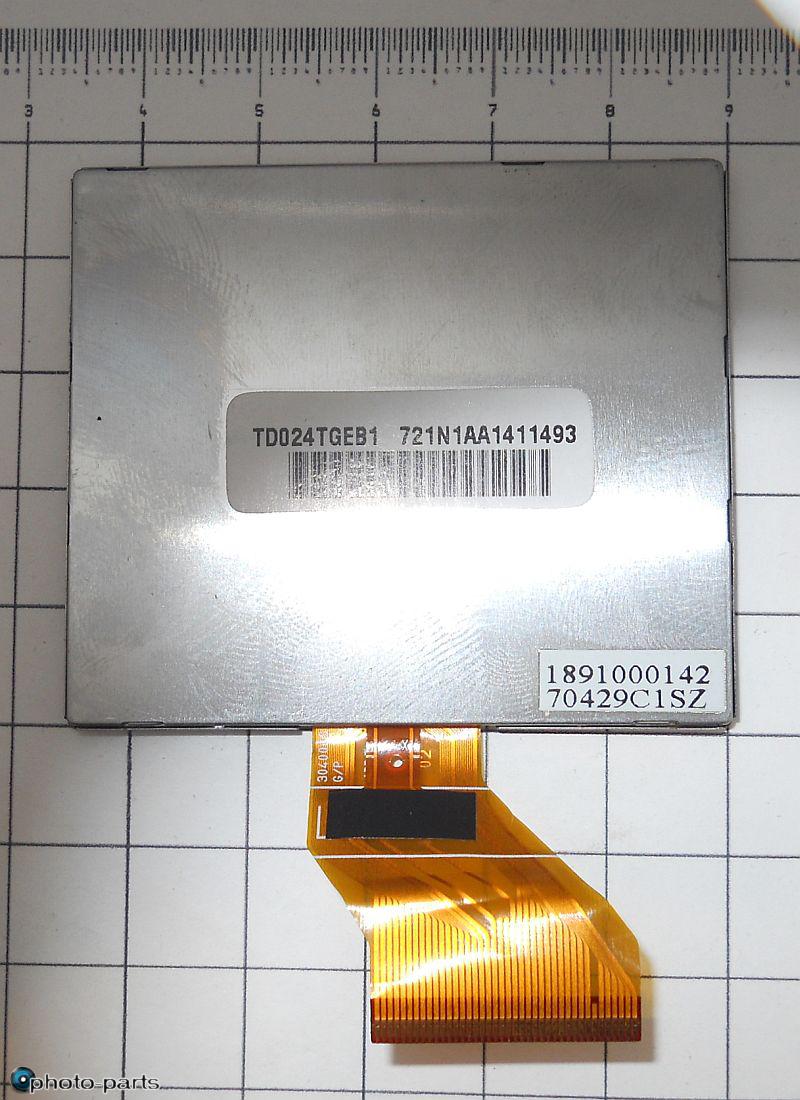

Nikon L11 Any other parts or stuff CB-USB7 cable Nikon L11 PCB	ZR36473BGCF (9S)	AD9923	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal				2xAA	TD024TGEB1	Casio Z19

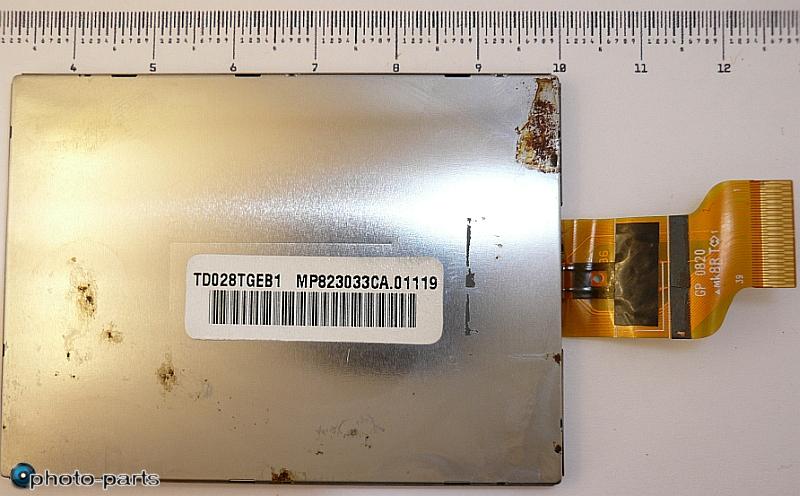

Nikon L15 Any other parts or stuff CB-USB7 cable Nikon L15 PCB	ZR36474BGCF (9E)	(C646 8MP) AD9920	AT1399AN	AT5558N Nikon EI-139	1454B = AT1454. All suffixes are equal			NEC D703014BF1	2xAA	TD028TGEB1 (304000060B) =TD028THEB1 (30400028A)	Nikon S500
Nikon L16 Any other parts or stuff CB-USB7 cable	ZR36483BGCF (10S)	ADDI9000	AT1398N	AT5558N	1454B = AT1454. All suffixes are equal				2xAA	TD028TGEB1 (304000060B) =TD028THEB1 (30400028A)	Nikon L16

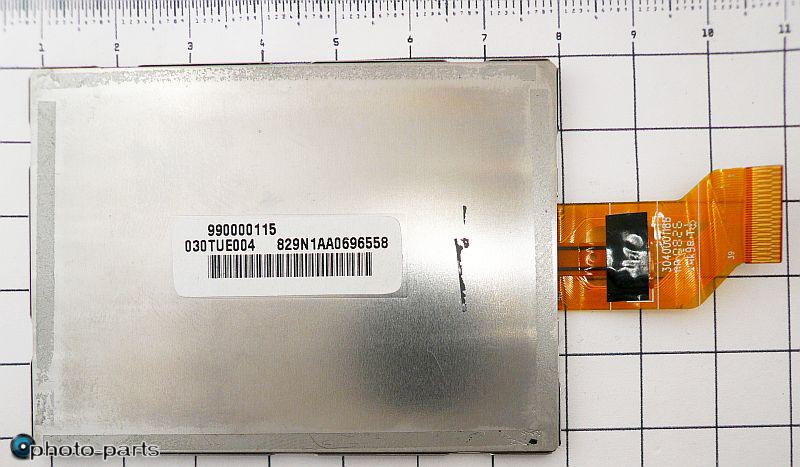

Nikon L18 Any other parts or stuff Nikon L18 PCB	ZR36483BGCF (10S)	ADDI9000	AT1398N	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	030TUE004 (304000118B)	Nikon L16

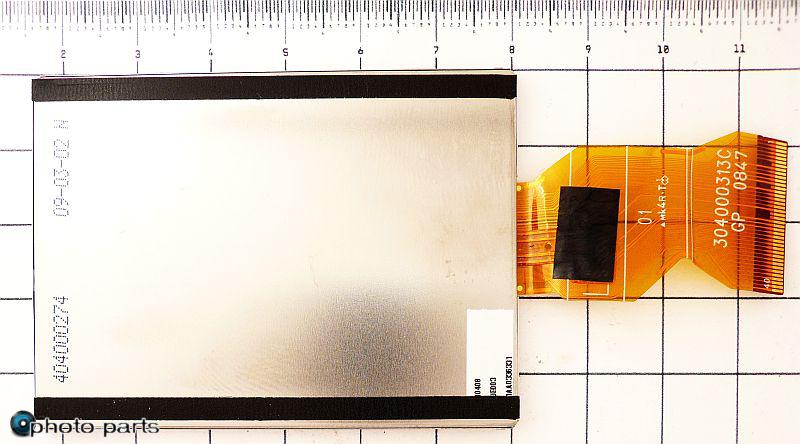

Nikon L19 Any other parts or stuff CB-USB7 cable	ZR36493BGCF (11S)	ADDI9000	AT1868N	AT5558N	1454B = AT1454. All suffixes are equal				2xAA	304000313C	Nikon L19

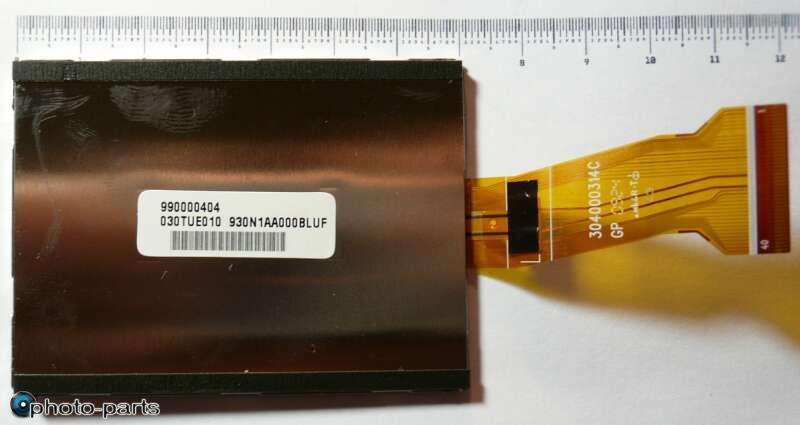

Nikon L20 Any other parts or stuff CB-USB7 cable Nikon L20 cover Nikon L20 PCB	ZR36493BGCF (11S)	ADDI9000	AT1868N	AT5558N	1454B = AT1454. All suffixes are equal	28G40GE			2xAA	030TUE010 (304000314C)	Nikon L19

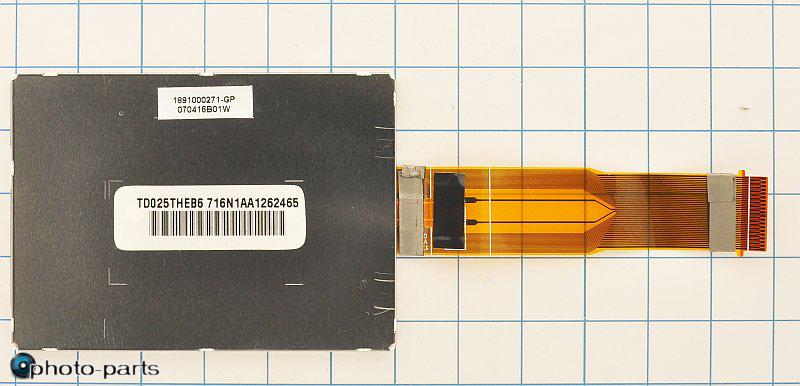

Norcent DCS-760	Sunplus SPCA5000A	AD9923	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	25H8F			Li-80B	TD025THEB6 (1891000271GP) =Olympus fe220 LCD, fits	Casio Z19
Polaroid I1237 Also known as: Polaroid i1236 Any other parts or stuff Polaroid I1237 PCB	SPCA5210A	(C677 12MP) VSP6244A	AT1868N	A5573	1454B = AT1454. All suffixes are equal				2xAA	WD-F9624V8	Casio Z35 6.3-18.9mm China Type 7 6.2-18.6mm	Бывают разных версий, с объективом Casio Z35 и своим
Polaroid I531	ZR36473BGCF (9S)	AD9923A	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	TD025THEE6	Casio Z19

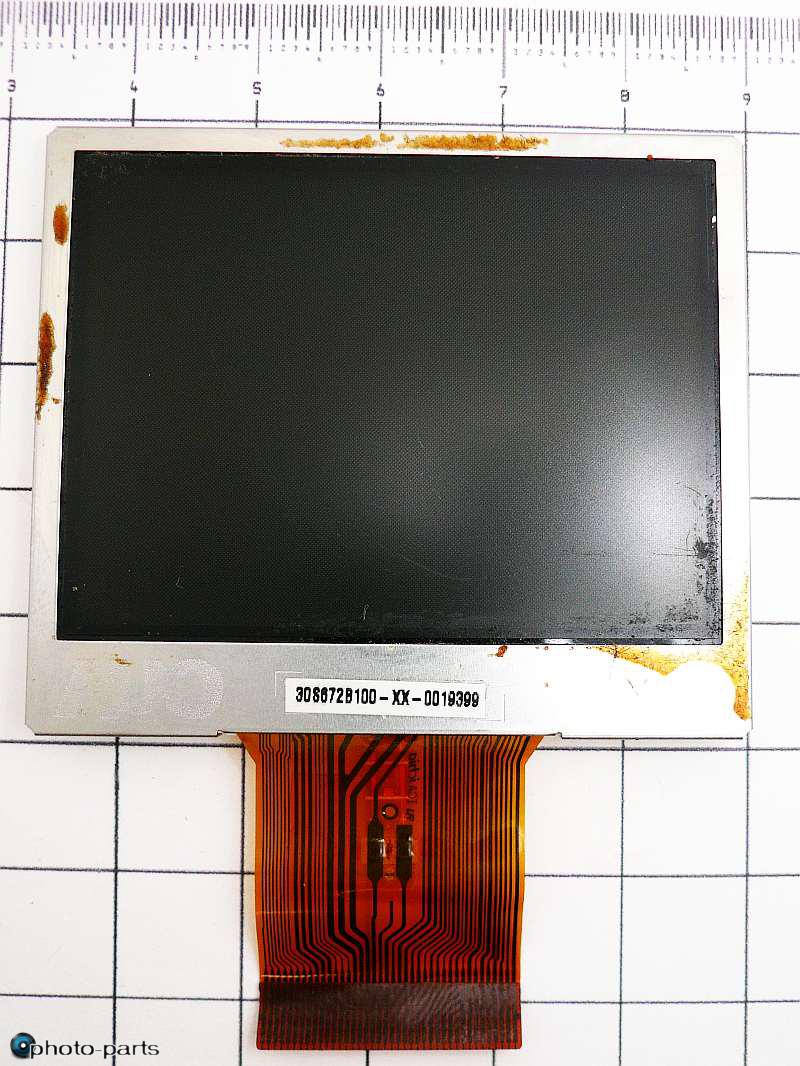

Polaroid I532	ZR36451BGCF (7M)	LR38667	AT1396AN	AT5555N	1454B = AT1454. All suffixes are equal	25H8F			2xAA	AUO 3AUT024B (642B100)	China Type 3 5.8-17.4mm 1:2.9-4.8
Polaroid I733	ZR36463BGCF	AD9923	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	TD025THEB3 (1701-136_V1.3)	Casio Z19
Polaroid I735	Sunplus SPCA5110A	(RJ23U3 7MP) AD9920A	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal					TD025THEEA , 025TUE006 (1891000130-GP, 304000129A)	China Type 2 5.8-17.4mm
Polaroid I737	Sunplus SPCA5110A	ADDI9000	AT1398N	AT5558N	1454B = AT1454. All suffixes are equal	P4002				TD025THEEA , 025TUE006 (1891000130-GP, 304000129A)	Casio Z19
Polaroid I830	Sunplus SPCA5110A	(C646 8MP) AD9920	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	P4002			2xAA	TD025THEEA , 025TUE006 (1891000130-GP, 304000129A)	Casio Z19
Praktica 750Z	Sunplus SPCA5110A	ADDI9000	AT1398N	AT5558N	1454B = AT1454. All suffixes are equal
Praktica luxmedia 5203	ZR36451BGCF (7M)	LR38667	AT1396AN	AT5555N	1454B = AT1454. All suffixes are equal	25H8F			2xAA	AUO 3AUT024B (642B100)	China Type 3 5.8-17.4mm 1:2.9-4.8

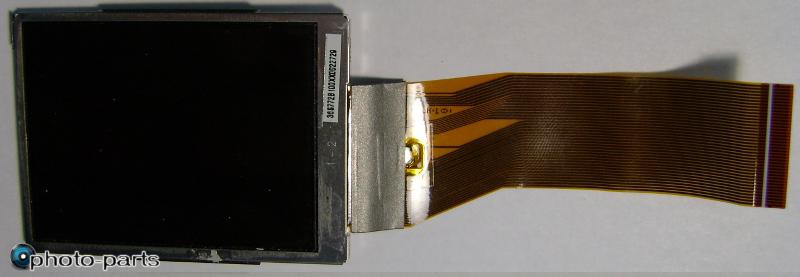

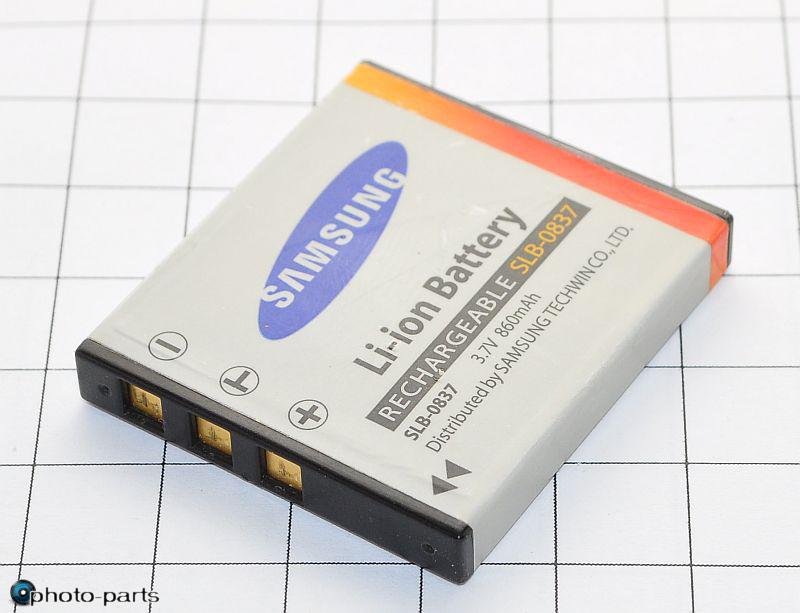

Samsung L700	ZR36470BGCF (9M)	AD9923A	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal	P4002			SLB-0837 Отличается от SLB-0837B формой	69.02A27.002	China Type 2 5.8-17.4mm	Zoom flex diifers
Samsung L73 Any other parts or stuff SUC-C2 USB Cable	ZR36470BGCF	AD9923A	AT1399AN	AT5556N	1454B = AT1454. All suffixes are equal				SLB-0837B	69.02A27.001	China Type 2 5.8-17.4mm

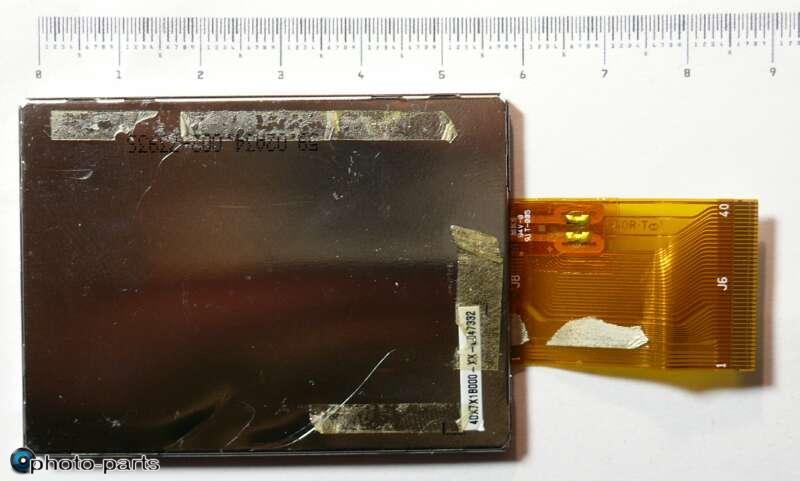

Samsung S85 Any other parts or stuff Samsung USB7 cable	ZR36473BGCF (9S)	(C646 8MP) AD9920A	AT1399AN	M63063	1454B = AT1454. All suffixes are equal	P4002			2xAA	AUO 40X7X1B000 (shield)	Samsung S1060	Service manual

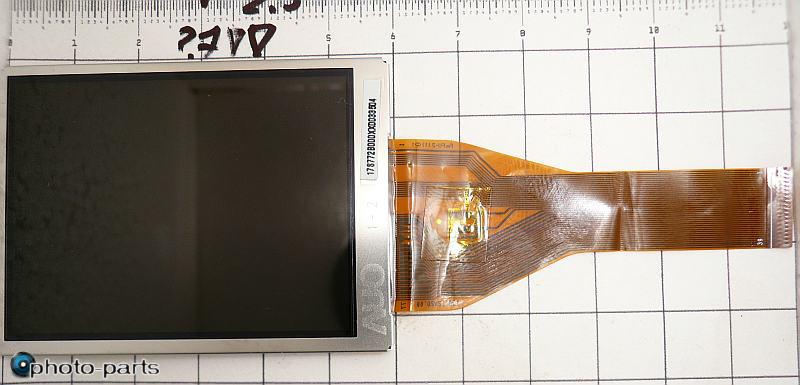

Samsung S850 Any other parts or stuff Samsung S850 PCB	ZR36470BGCF (9M)	AD9923A	AT1399AN	AT5556N	1454B = AT1454. All suffixes are equal	P4002			2xAA	69.02A27.001	Samsung S850
UFO DC640	ZR36473BGCF (9S)	AD9923	AT1399AN	AT5558N	1454B = AT1454. All suffixes are equal					ICA 94V-0 0722
