Model	Primary DSP/CPU and (RAM)	CCD driver, CCD row driver, (CCD marking)	Power manager, PWM controller	Zoom driver, OIS driver, Mirror charge driver	Flash charge driver	IGBT	Audio/video controller, all other chips	System control processor, MCU	Battery	LCD	ZOOM	Comments
Canon A410 Any other parts or stuff Canon A410 PCB	Digic II CH4-6293	NN12062A	MB39C302	M63064	BJW 4*4 SMD корпус, TPS65552A	8G133		R4574		AUO CanonA410	Canon A430
Canon A420 Any other parts or stuff Canon A420 PCB	Digic II CK4-1086	AD9921	MB39C302	M63064	BJW 4*4 SMD корпус, TPS65552A				2xAA	ACX343AKM-7	Canon A430
Canon A430 Also known as: Canon PC1186 Any other parts or stuff Canon A430 PCB	Digic II CK4-1086	AD9921	MB39C302	M63064	BJW 4*4 SMD корпус, TPS65552A				2xAA	ACX343AKM-7	Canon A430
Canon A450 Also known as: Canon PC1231	Digic II CK4-1086	AD9923	MB39C302	M63064	BJW 4*4 SMD корпус, TPS65552A	8G133	A74310		2xAA	ACX363AKM-7	Canon A430
Canon A460 Also known as: Canon PC1226 Any other parts or stuff Canon A460 PCB	Digic II CK4-1086	AD9923	MB39C302	M63064	BJW 4*4 SMD корпус, TPS65552A	(tube 23x16x2mm) 8G133	A74310		2xAA	ACX363AKM-7	Canon A430
Canon Ixus 120 Also known as: Canon PC1430 PowerShot SD940 IS	Digic STACKED	ADDI9001	MB39C317	R2J30507	BJW 4*4 SMD корпус, TPS65552A	P4002	4636 AA1900 ADV7521		NB-4L	TX0750EAAA1	Canon Ixus 105	Объектив отличается разъемом (уже)

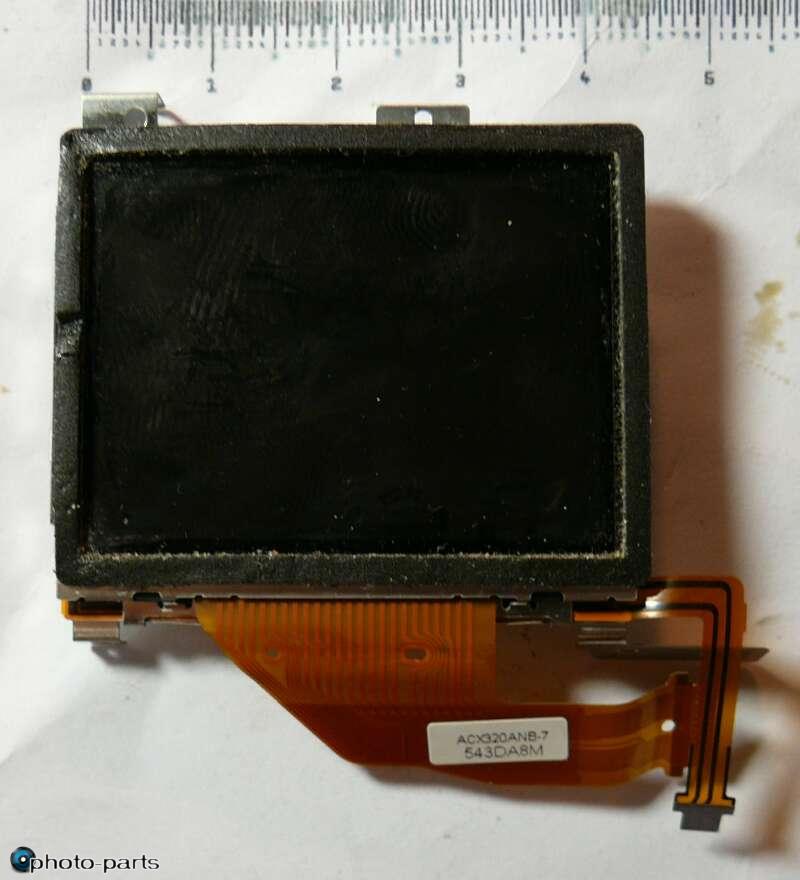

Canon Ixus i zoom Also known as: Canon PC1144 PowerShot SD10	Digic STACKED	NN12062A	MB39C301	BD6755	BJW 4*4 SMD корпус, TPS65552A		M4006ER	E4574 RTC clock canon	NB-4L	ACX320ANB-7	Canon Ixus i (PC1144)

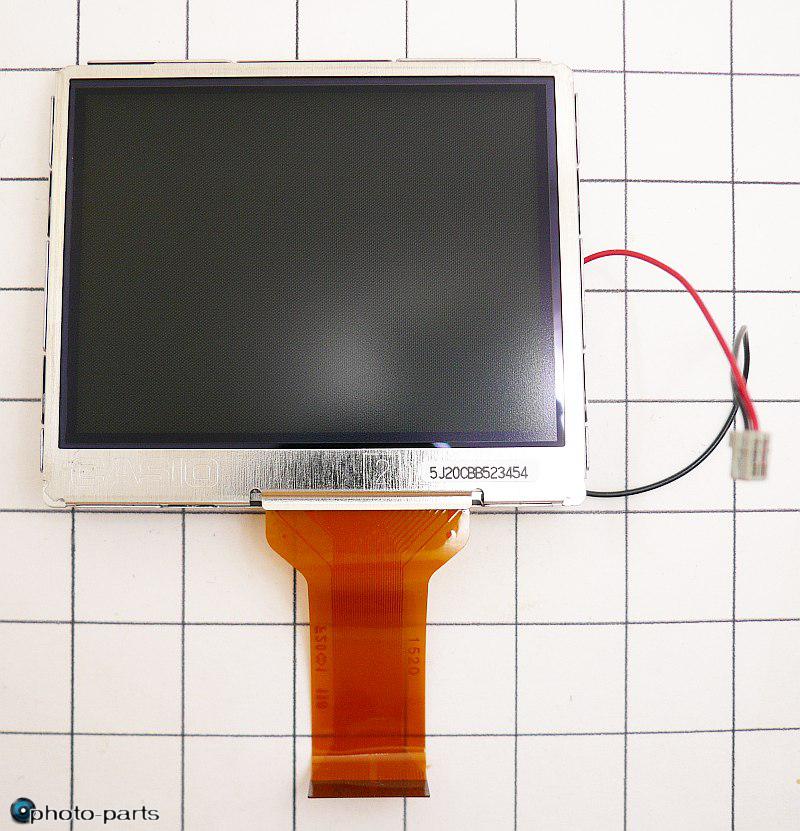

Casio Z120	Casio R8J30225BG	AD9923	1331 A02A R128D002B BDR	M63069	BJW 4*4 SMD корпус, TPS65552A		4631		2xAA	Casio 2087	Casio Z850

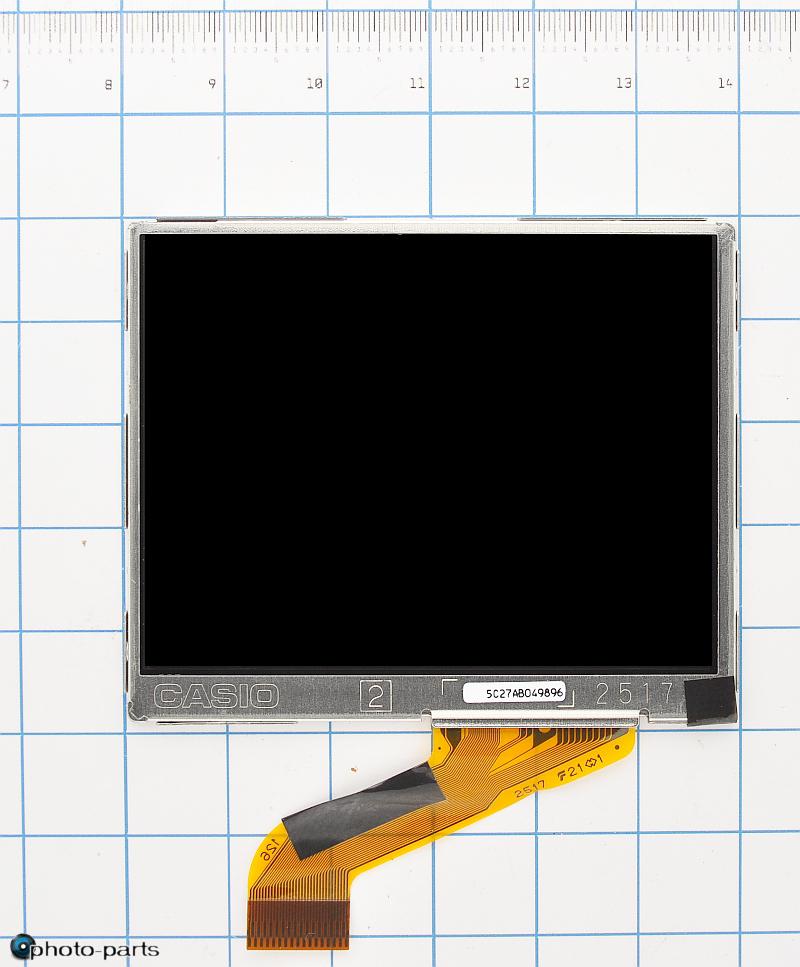

Casio Z57 Any other parts or stuff Casio Z57 PCB	Casio R8J30224BG	AD9923	BDR BDR	R2S30 401NP	BJW 4*4 SMD корпус, TPS65552A				Casio NP-40	Casio 2517fl	Casio Z40 5.8-17.4mm f
Nikon P3	Nikon EI-135 Nikon EI-136 Nikon EI-136	AD9923		M63062	BJW 4*4 SMD корпус, TPS65552A		WM8974G			Casio 2559fl

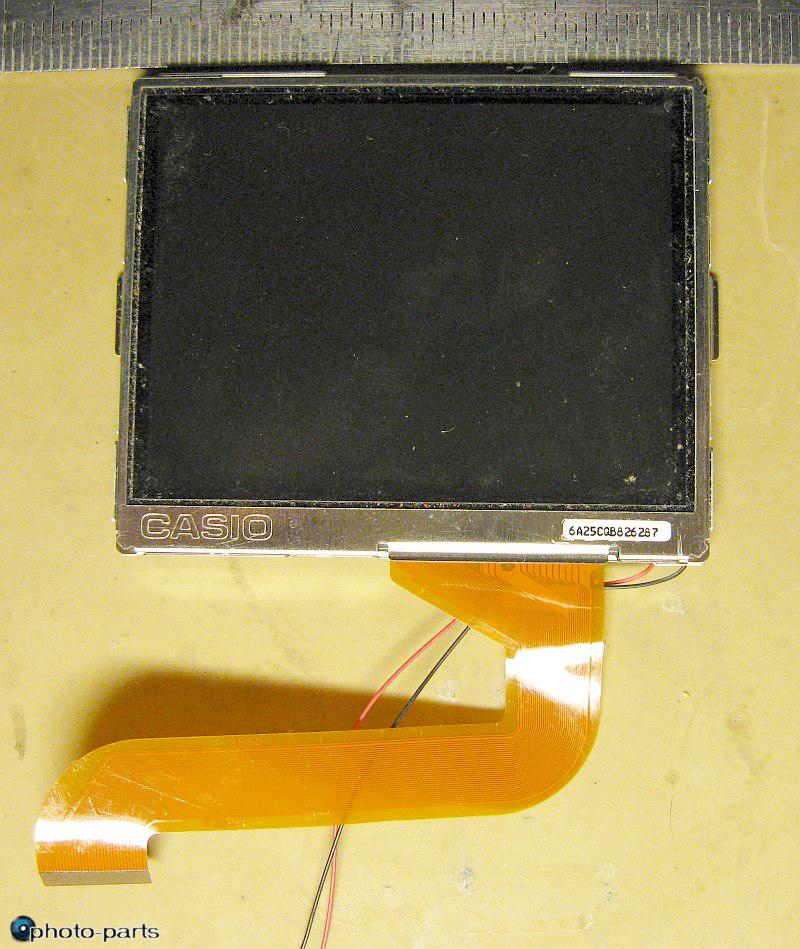

Nikon P4 Any other parts or stuff Nikon P4 PCB	Nikon EI-135	AD9923	BD9739KN	M63062	BJW 4*4 SMD корпус, TPS65552A	25J8F				Casio 2559fl	Nikon P5000

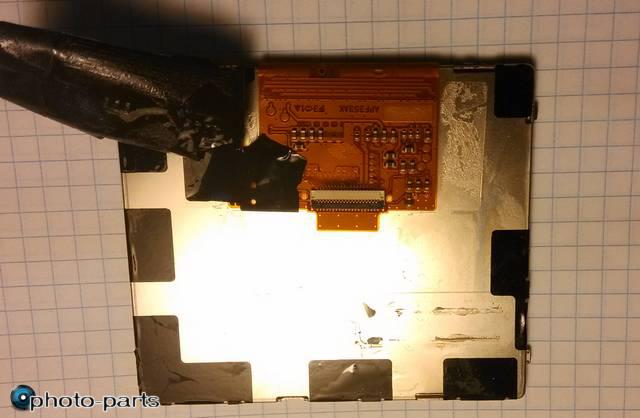

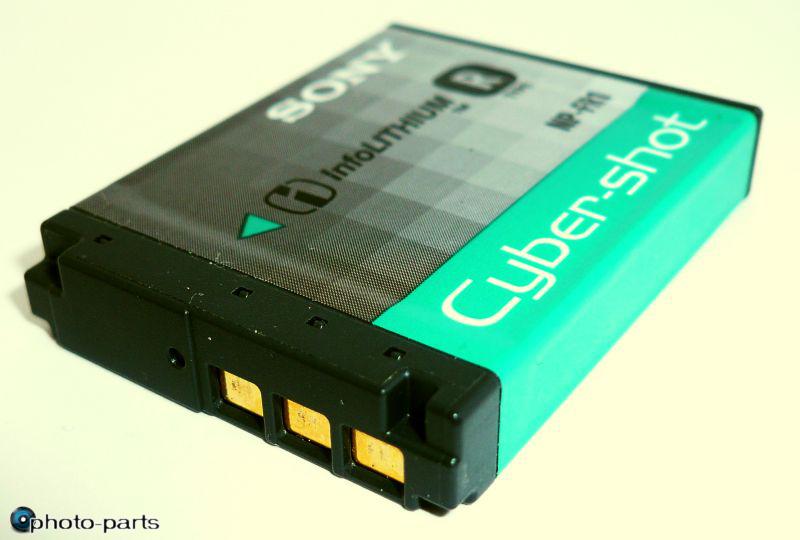

Sony G1 Also known as: Sony DSC-G1		AD80080A	CXA8133AGF	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A	25J8F	WM8977G	89083	NP-FR1	ACX353AK-1	Sony T10

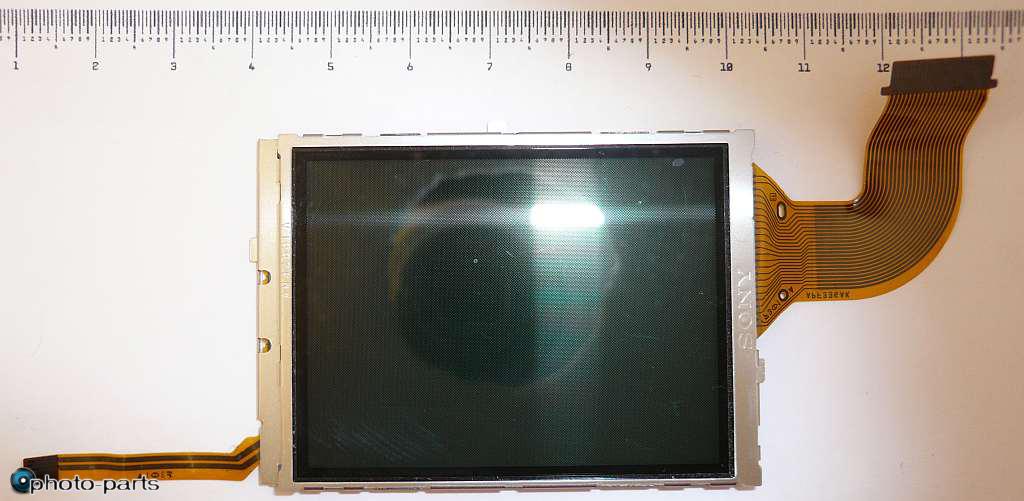

Sony H1	CXD3188AGG MB91195	AD80080A	BDU SC901570A	3403A 3403A 3403A 3403A M63067W	BJW 4*4 SMD корпус, TPS65552A	25J8F	3230 H6414 M3012GA		2xAA	ACX336AK-3 (APF336AK)	Sony H1

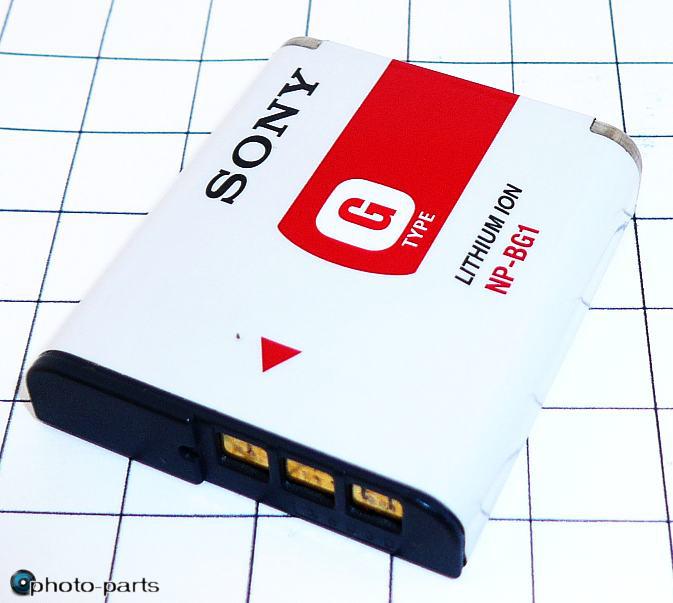

Sony H10 Any other parts or stuff Sony H10 flash board Sony H10 flash flex Sony W120 usb cable	D4208A DSP STACKED	AD80148	SC901572	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A		12918		NP-BG1	APF555AK (ACX555BKA-1, ACX555BK-1)	Sony H20
Sony H3	DSP STACKED	AD80148	SC901572	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A	25J8F	12918		NP-BG1	ACX358AKR-3	Sony H20

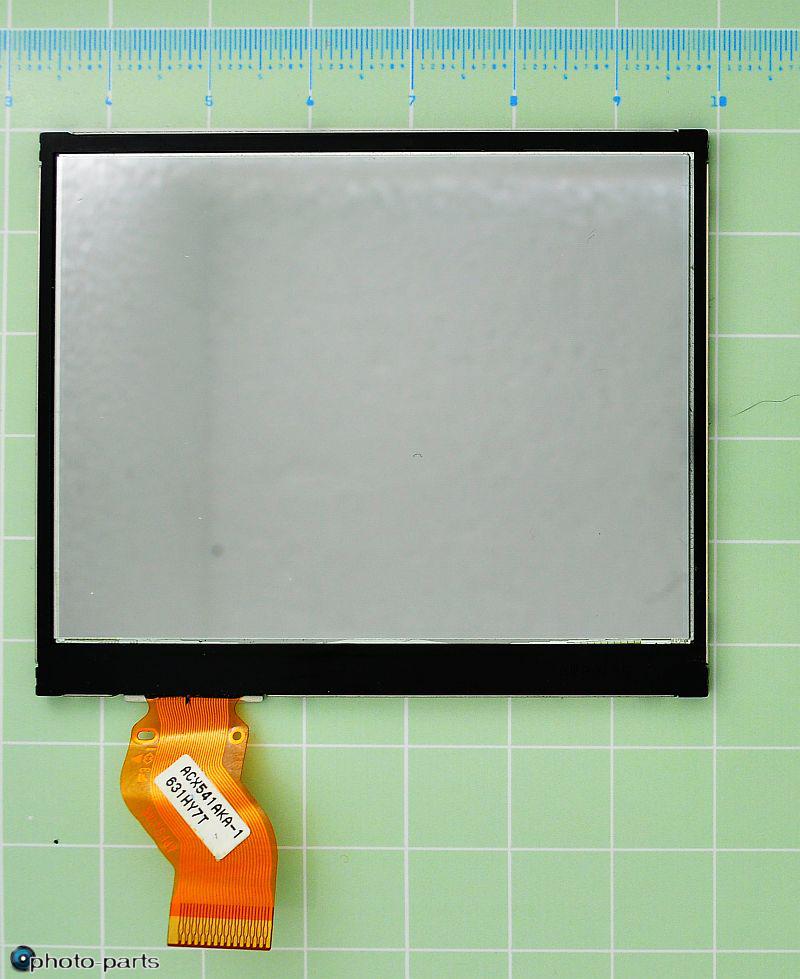

Sony H5 Any other parts or stuff H2 shutter button Sony H5 files		VSP00M20	SC901571	R2J30500	BJW 4*4 SMD корпус, TPS65552A	8G133			2xAA	ACX541AKA-1	Sony H5
Sony H50 Any other parts or stuff Sony H50 LCD flex Sony W120 usb cable	DSP STACKED	AD80148	SC901572	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A	8G133	H6414		NP-BG1	APF555AK (ACX555BKA-1, ACX555BK-1)	Sony H50

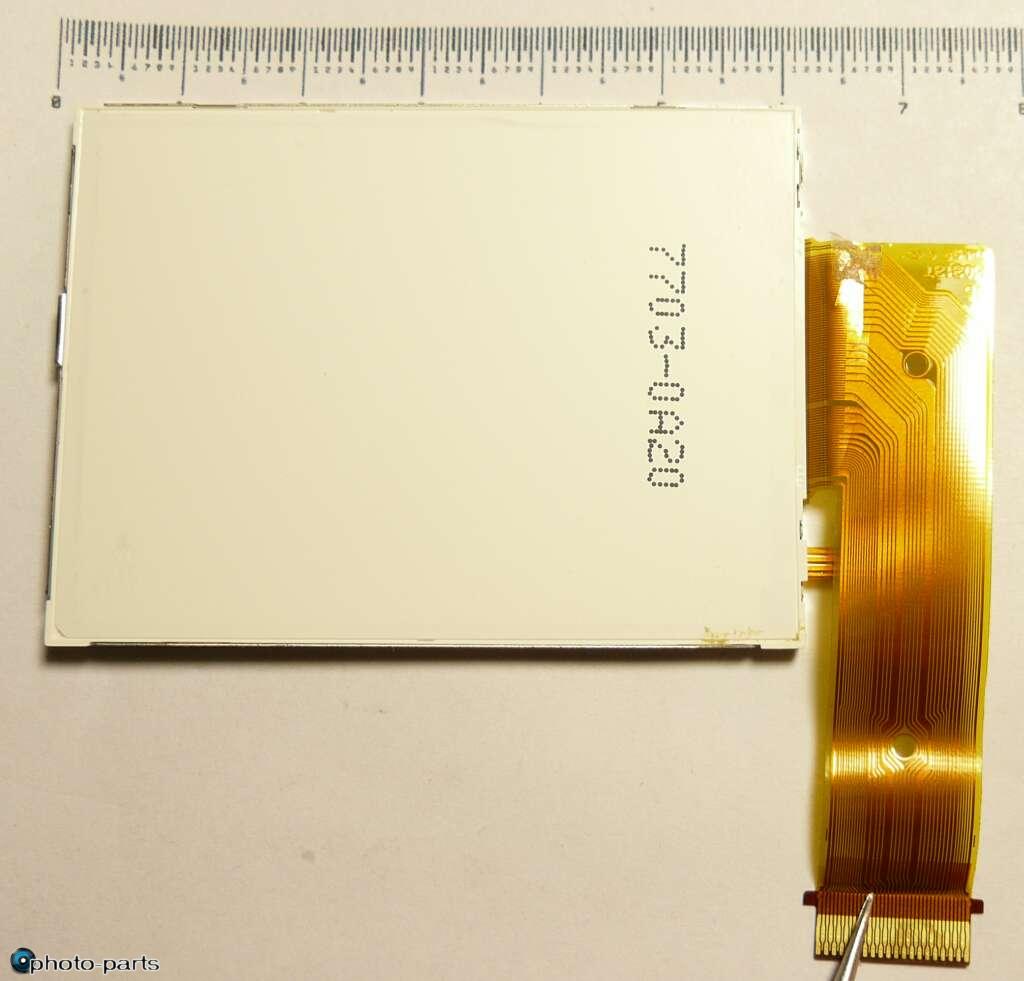

Sony H7 Any other parts or stuff H7 shutter button Sony W120 usb cable	DSP STACKED	AD80148	7287 Battery check monitor MAX8611	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A	8G133	12918 A3739 HPY401	89083	NP-BG1	M0313T	Sony H50
Sony H9 Any other parts or stuff H7 shutter button Sony W120 usb cable	DSP STACKED	AD80148	7287 Battery check monitor MAX8611	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A		12918 A3739 HPY401	89083	NP-BG1	APF555AK (ACX555BKA-1, ACX555BK-1)	Sony H50
Sony M1	SDP356B32EGA	(ICX473CQZ 5MP) D3433GA	CXA8133AGF	M63067W	BJW 4*4 SMD корпус, TPS65552A						Sony T1	Объектив отличается шлейфом
Sony M2	D3197BGA SDP356B32EGA TMS320DM320	AD80080A	CXA8133AGF U7805GLU	M63067W	BJW 4*4 SMD корпус, TPS65552A			80083
Sony N1 Any other parts or stuff Sony W120 usb cable	Sony D4200A	VSP00M20	7681 SC901570B	LV8053	BJW 4*4 SMD корпус, TPS65552A	G022	H6414	87L8530		ACX541AKA-1	Sony N2
Sony N2 Any other parts or stuff Sony N2 PCB Sony W120 usb cable	Sony D4200A	VSP02M21	SC901571	LV8053	BJW 4*4 SMD корпус, TPS65552A		12918	87L8530		ACX541AKA-1	Sony N2

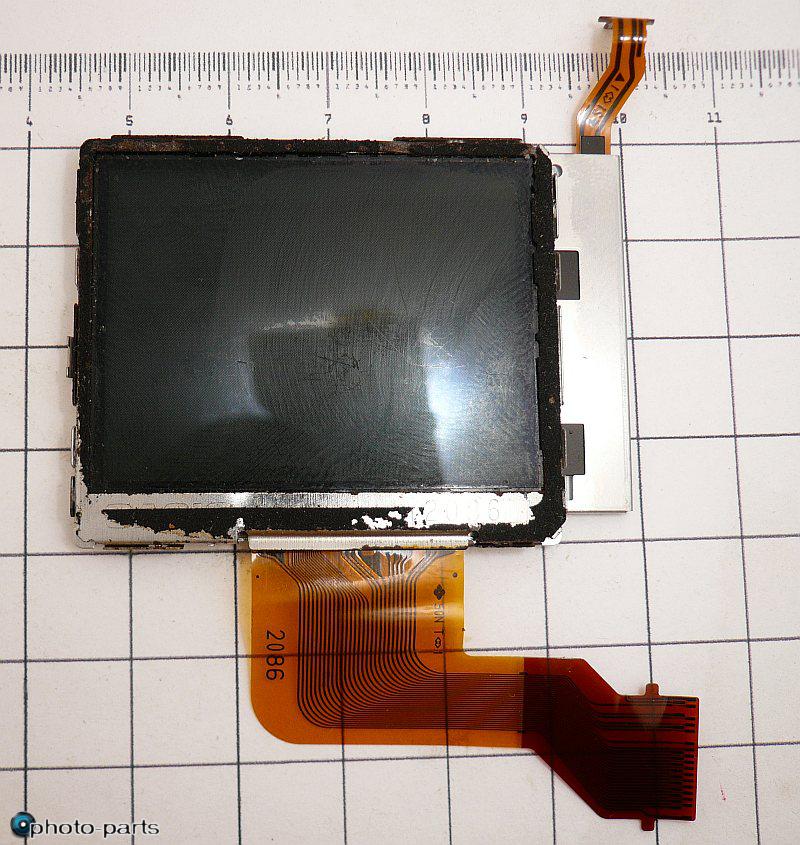

Sony S60	CXD3188AGG	AD80080A	SC901570A	BD6756	BJW 4*4 SMD корпус, TPS65552A	25J8F	H6414		2xAA	Casio 2086fl 2086sh	Sony S60

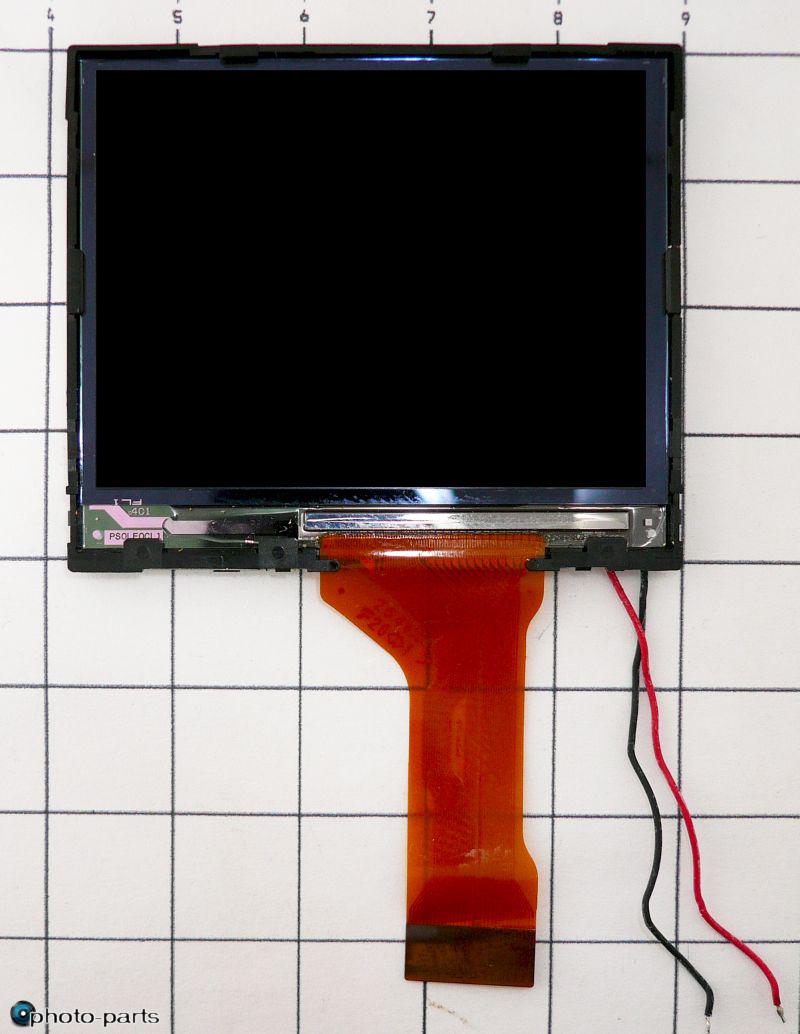

Sony S600 Any other parts or stuff Sony S600 PCB	CXD3188AGG	AD80080A	SC901571	U2344GLV	BJW 4*4 SMD корпус, TPS65552A	25J8F	D6878		2xAA	Casio 2541fl	Sony S600

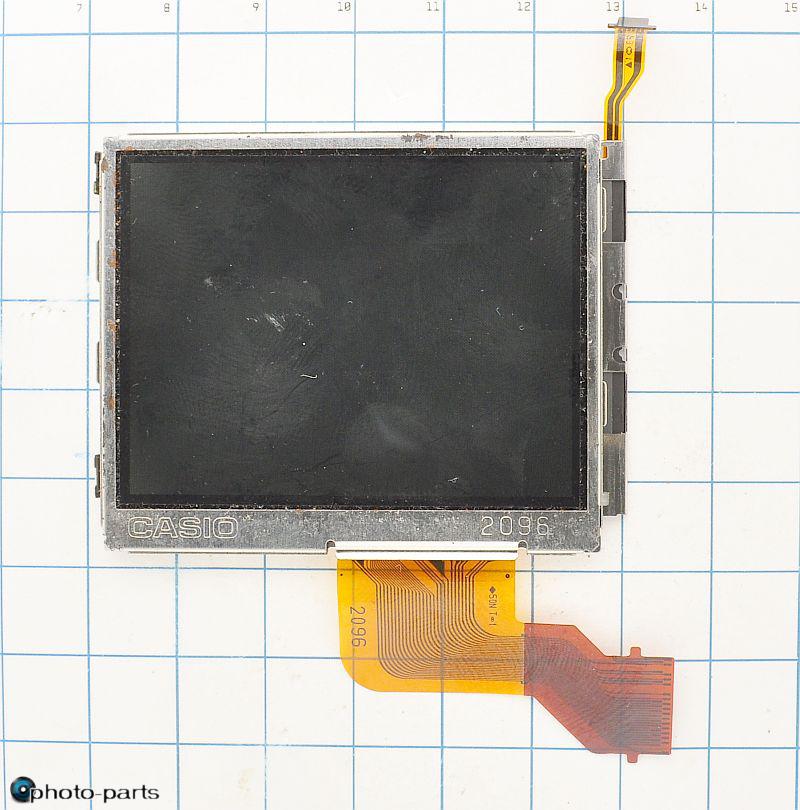

Sony S90 Any other parts or stuff Sony S90 PCB	CXD3188AGG	AD80080A	SC901570A	BD6756	BJW 4*4 SMD корпус, TPS65552A	25J8F	H6414		2xAA	Casio 2096fl	Sony S60

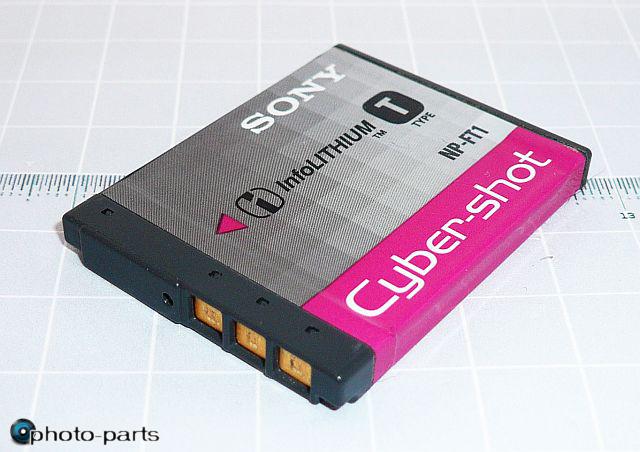

Sony T10 Any other parts or stuff Sony T10 PCB Sony W120 usb cable	Sony D4200A	VSP00M21	BRE SC901571	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A	25J8F	12918 3230		NP-FT1	APF542AK (ACX542BL-1, ACX542AK-1)	Sony T10
Sony T100 Any other parts or stuff Sony W120 usb cable	DSP STACKED	(C636 8MP) Sony ICX636 VSP2700	7287 Battery check monitor	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A		12918 HPY401	89083	NP-BG1	APF555AK (ACX555BKA-1, ACX555BK-1)	Sony T100

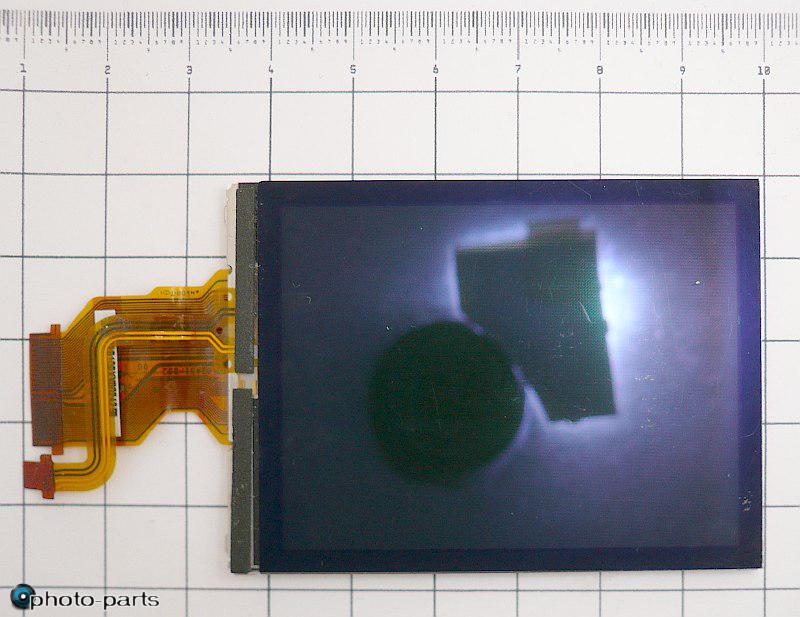

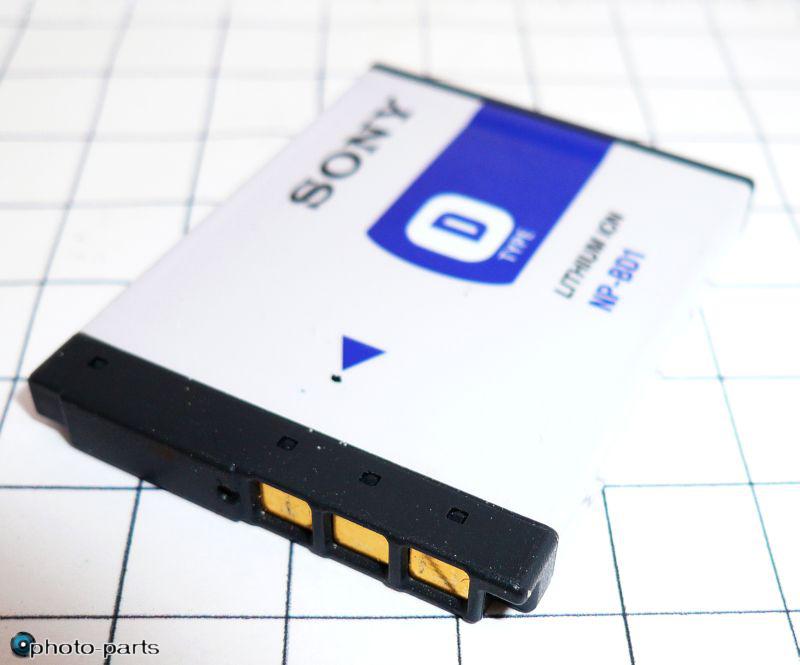

Sony T2 Any other parts or stuff Sony W120 usb cable	DSP STACKED	AD80148	SC901572	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A		12918 3739A HPY402		NP-BD1	69.02A31.002 touch	Sony T10

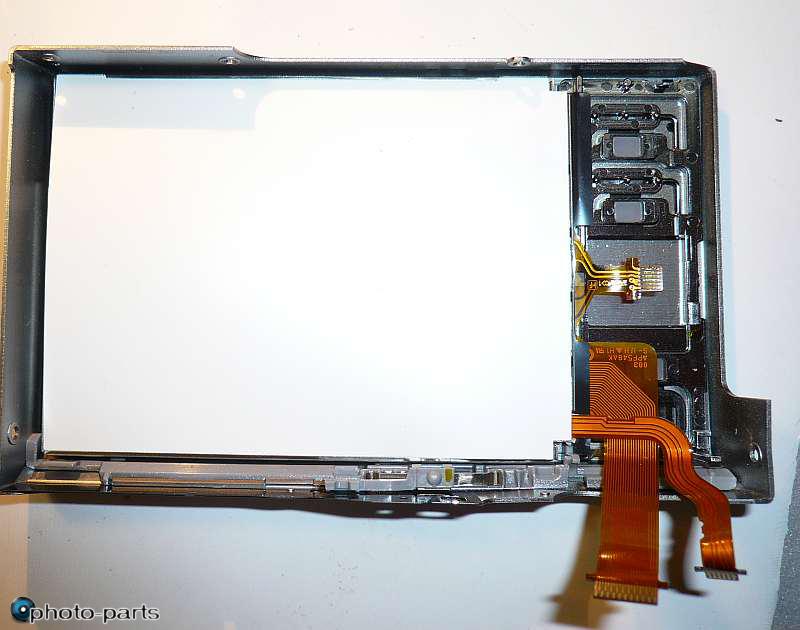

Sony T50 Any other parts or stuff Sony W120 usb cable	Sony D4200A	VSP00M21	SC901571	M63067W R2J30500	BJW 4*4 SMD корпус, TPS65552A	25J8F	12918 M3012GA		NP-FR1	ACX548AKA-1 touch	Sony T10

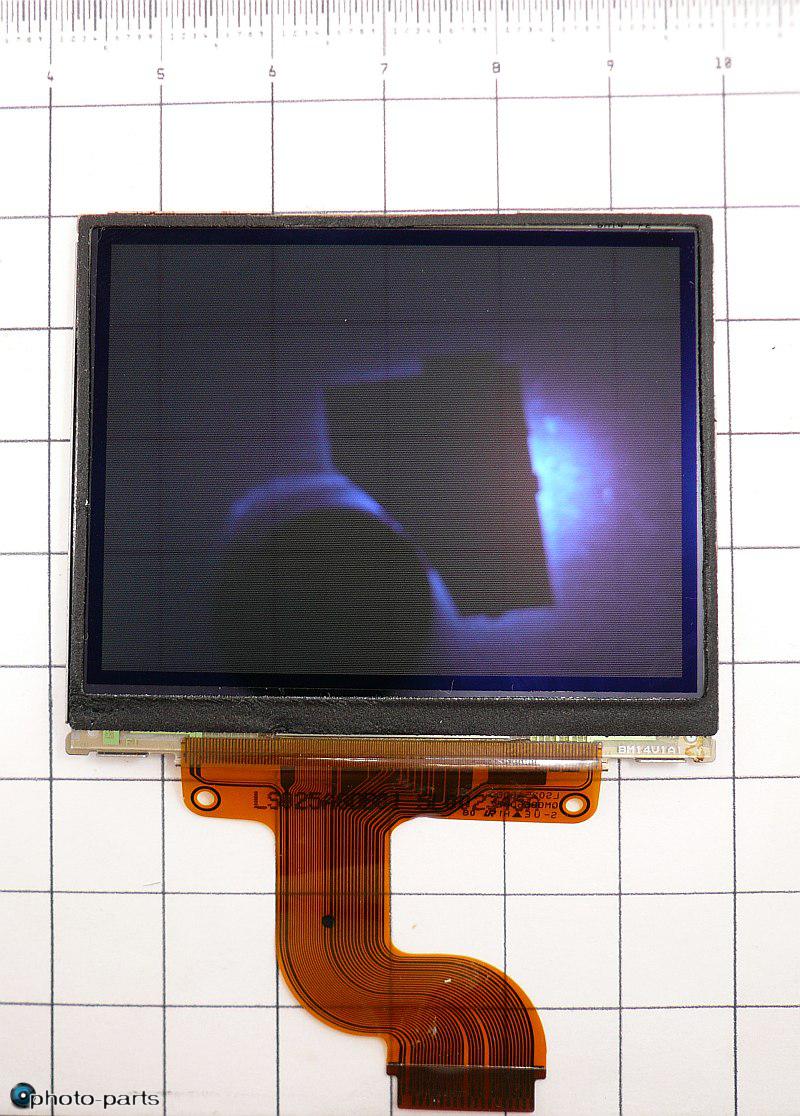

Sony T7	Sony D4200A small	AD80080A	7681 SC901570B	M63067W	BJW 4*4 SMD корпус, TPS65552A	25J8F	H6414		NP-FE1	LS025A8DB01	Sony T7
Sony T9 Any other parts or stuff Sony W120 usb cable	Sony D4200A	AD80080A	BDU SC901570B	BD6876 R2J30500	BJW 4*4 SMD корпус, TPS65552A		3230 H6414		NP-FT1	APF542AK (ACX542BL-1, ACX542AK-1)	Sony T10

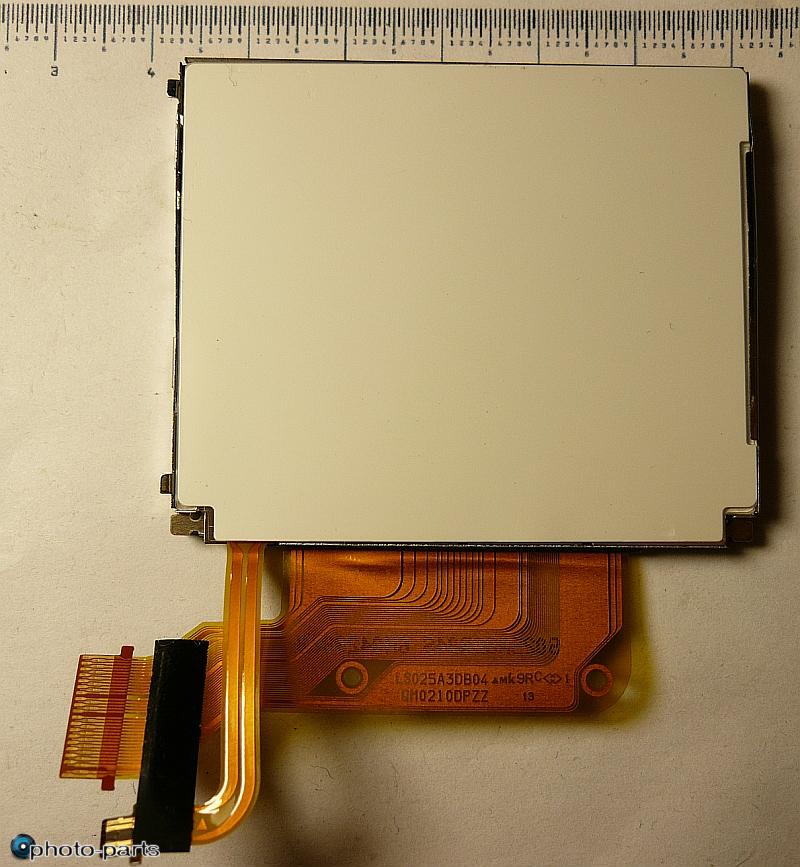

Sony W100 Any other parts or stuff Sony W120 usb cable	CXD3199GG	VSP00M21	SC901571	M63067W	BJW 4*4 SMD корпус, TPS65552A	25J8F	12918		NP-BG1	LS025A3DB04 Можно установить mju700 LCD	Sony W15 Sony W100 шлейф отличается
Sony W110 Any other parts or stuff Sony W110 PCB Sony W120 usb cable	DSP STACKED	(Sony W110 CCD) VSP00M21	SC901572	LV8053	BJW 4*4 SMD корпус, TPS65552A				NP-BG1	ACX358AKR-3	Sony W110
Sony W115 Any other parts or stuff Sony W120 usb cable	DSP STACKED	VSP00M21	SC901572	LV8053	BJW 4*4 SMD корпус, TPS65552A				NP-BG1	ACX358AKR-3	Sony W110
Sony W120 Any other parts or stuff Sony W120 PCB Sony W120 usb cable	DSP STACKED	VSP00M21	SC901572	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A				NP-BG1	ACX358AKR-3	Sony W220 =W110+OIS
Sony W130 Any other parts or stuff Sony W120 usb cable Sony W130 PCB	DSP STACKED	(Sony W130 CCD) VSP00M21	SC901572	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A				NP-BG1	ACX358AKR-3	Sony W220 =W110+OIS

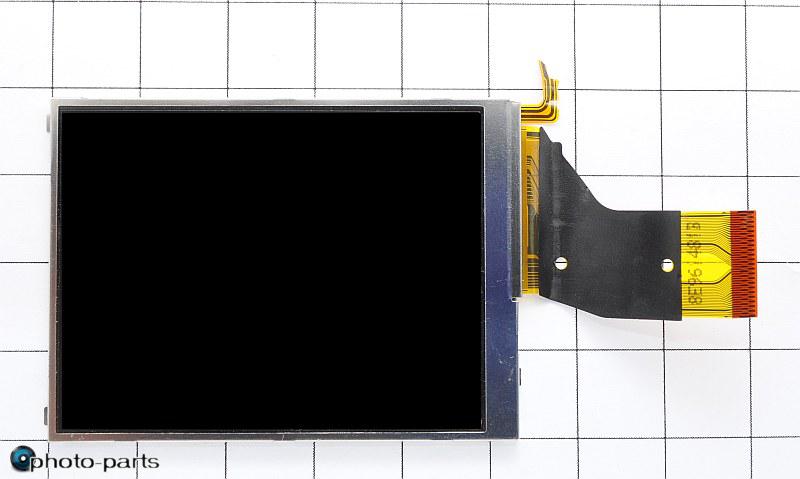

Sony W150 Any other parts or stuff Sony W120 usb cable Sony W150 PCB	D4208A DSP STACKED	AD80148	7682 SC901572	M63057 R2J30500	BJW 4*4 SMD корпус, TPS65552A		3739A H6414 HPY402		NP-BG1	M2576D	Sony W150 W270 от W150 отличается оптическим видоискателем
Sony W170 Any other parts or stuff Sony W120 usb cable	DSP STACKED	AD80148	SC901572	M63057 R2J30500	BJW 4*4 SMD корпус, TPS65552A		3739A H6414 HPY402		NP-BG1	M2576D	Sony W150 W270 от W150 отличается оптическим видоискателем

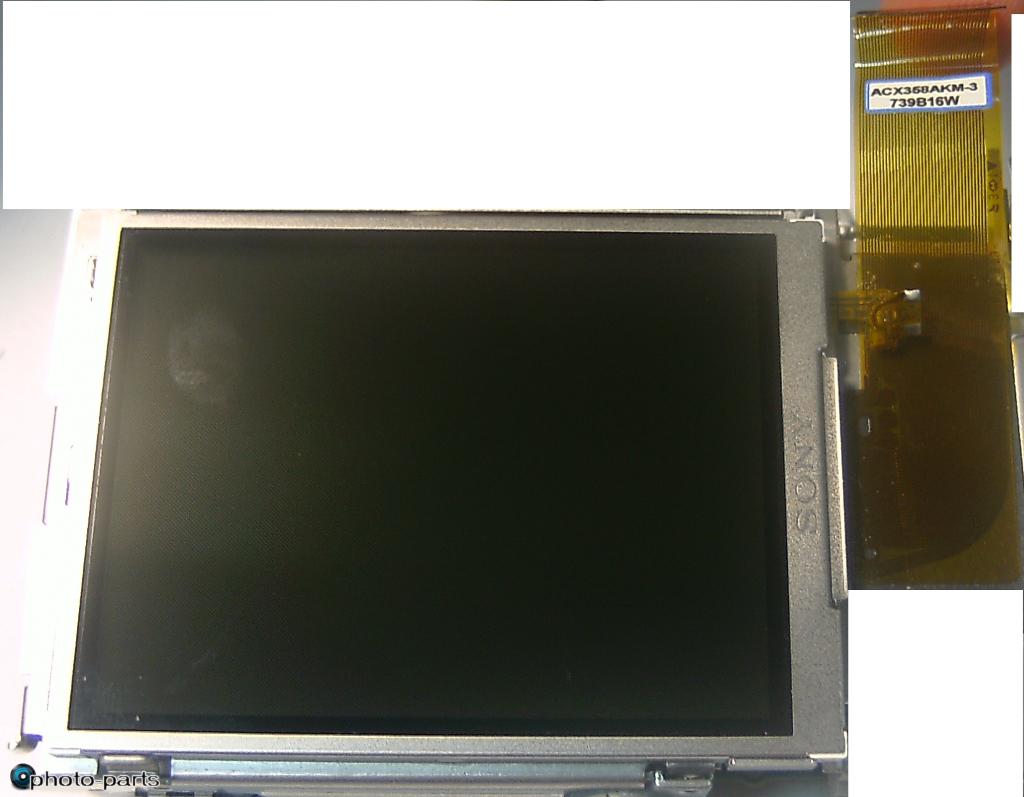

Sony W200 Any other parts or stuff Sony W120 usb cable Sony W200 PCB	DSP STACKED	(C612 12MP) D4806GA	MAX8611	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A	25J8F	12918 3739A	89083	NP-BG1	ACX358AKM-3	Sony W300
Sony W30 Any other parts or stuff Sony W120 usb cable W35 shutter button	CXD3188AGG	(C624 6MP) VSP00M20	SC901571	BD6876	BJW 4*4 SMD корпус, TPS65552A		H6414			ACX351AKM-3	Sony W70
Sony W300 Any other parts or stuff Sony W120 usb cable	DSP STACKED	D4811GA	SC901572	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A	P4003	H6414 HPY402		NP-BG1	M2576D	Sony W300

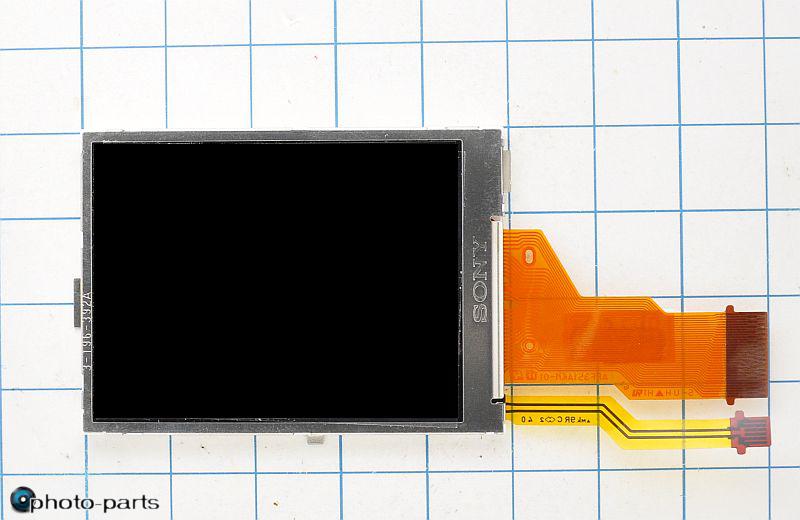

Sony W35 Any other parts or stuff W35 shutter button	CXD3188AGG	VSP00M20	SC901571	BD6876	BJW 4*4 SMD корпус, TPS65552A		H6414		NP-BG1	ACX351AKM-3	Sony W70
Sony W40 Any other parts or stuff Sony W120 usb cable W35 shutter button	CXD3188AGG	VSP00M20	SC901571	BD6876	BJW 4*4 SMD корпус, TPS65552A		H6414		NP-BG1	ACX351AKM-3	Sony W70

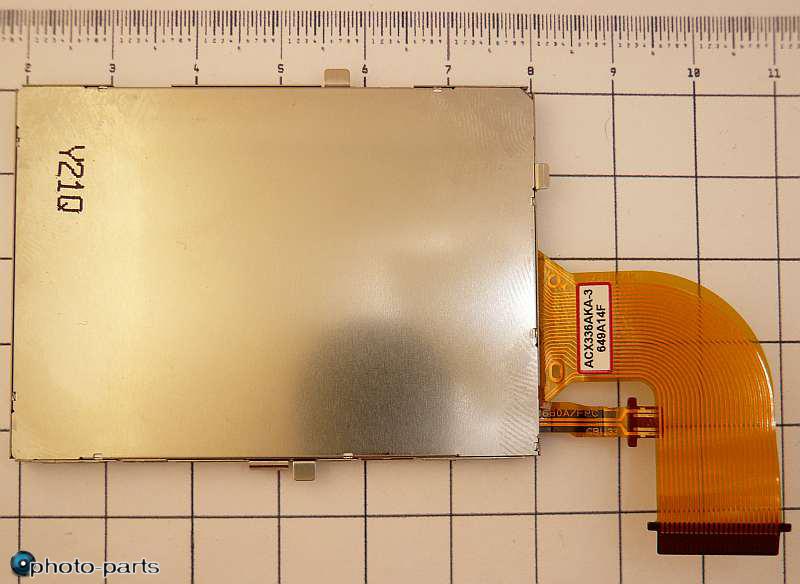

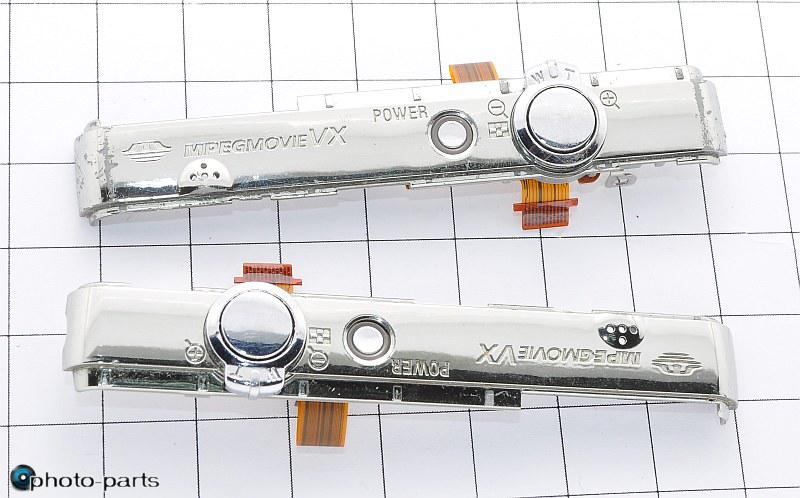

Sony W50 Any other parts or stuff Sony W120 usb cable Sony W50 PCB Sony W50 top cover W35 shutter button	CXD3199GG	(C624 6MP) VSP00M21	SC901571	M63067W	BJW 4*4 SMD корпус, TPS65552A	G022	H6414 M3012GA		NP-BG1	ACX336AKA-3	Sony W70

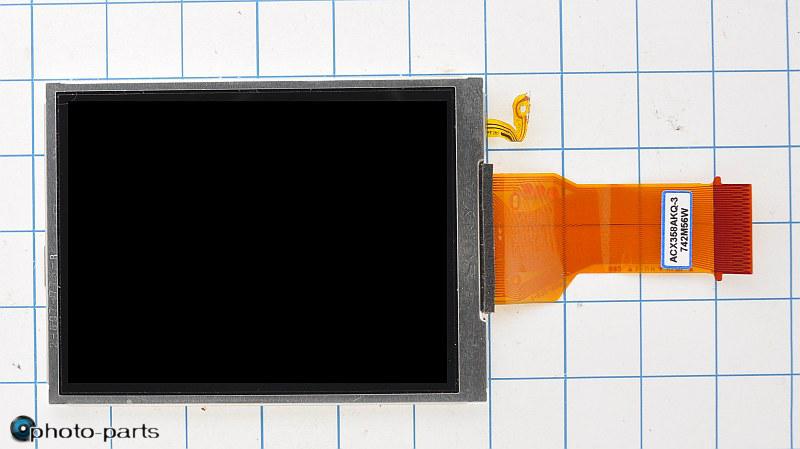

Sony W55 Any other parts or stuff Sony W120 usb cable Sony W55 PCB W35 shutter button	CXD3199GG	VSP00M21	SC901571	M63067W	BJW 4*4 SMD корпус, TPS65552A		H6414		NP-BG1	ACX358AKR-3	Sony W70
Sony W70 Any other parts or stuff Sony W120 usb cable Sony W50 top cover Sony W70 PCB W35 shutter button	CXD3199GG	VSP00M21	SC901571	M63067W	BJW 4*4 SMD корпус, TPS65552A		H6414 M3012GA		NP-BG1	ACX336AKA-3	Sony W70
Sony W90 Any other parts or stuff Sony W120 usb cable	DSP STACKED	(C629 7MP) VSP00M21	7287 Battery check monitor BRE MAX8611	LV8053 R2J30500	BJW 4*4 SMD корпус, TPS65552A		A3739 H6414 HPY401	89083	NP-BG1	M0313T	Sony W80
